Removing Front Wheel Housing Liner (Grille)

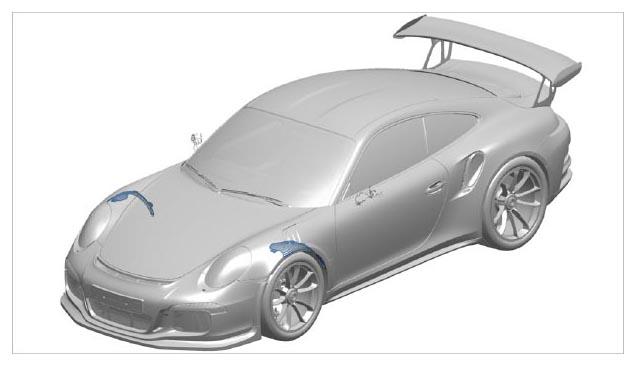

Fig 1: Identifying Front Wheel Housing Liner Position (Grille)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Remove front wheel housing liner (grille).
   1. 1.1. Unscrew fastening screws -1-  .
   2. 1.2. Remove grille.

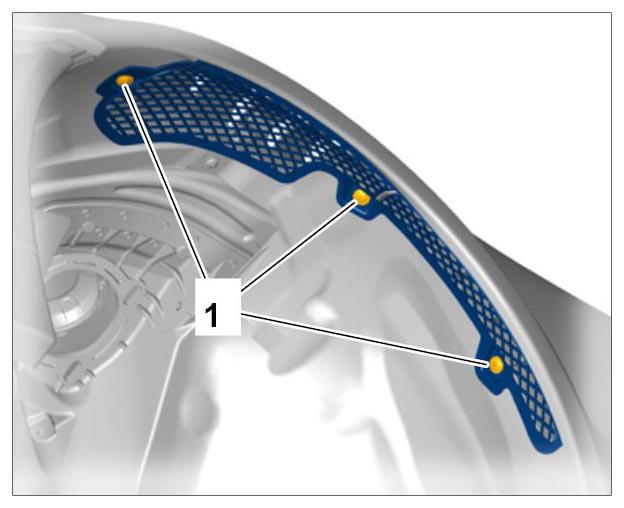

   Fig 2: Identifying Front Wheel Housing Liner Screws (Grille)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
