Removing And Installing Front Wheel Housing Liner (Front Part)

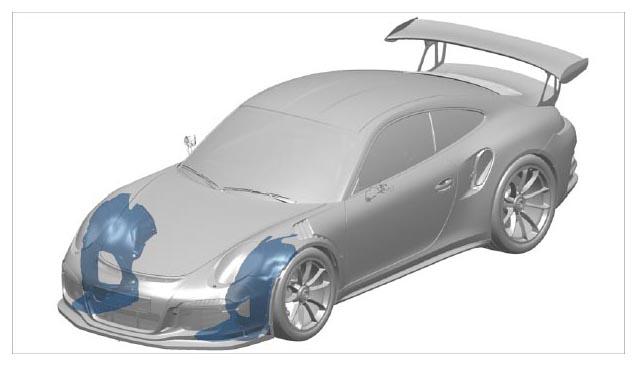

Fig 1: Identifying Front Wheel Housing Liner (Front Part) Position
G10005300Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Remove lower part of front wheel housing liner (front part).

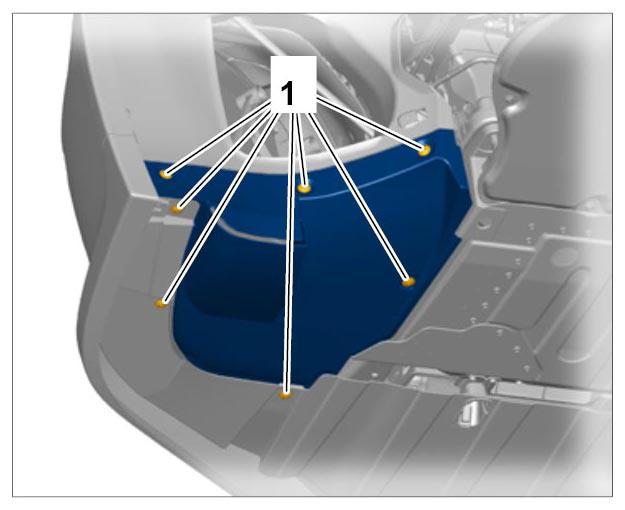

    Fig 2: Identifying Lower Part Of Front Wheel Housing Liner Fastening Screws (Front Part)
    G10005301Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 1.1. Unscrew fastening screws -1-  .
    2. 1.2. Remove lower part of front wheel housing liner (front part).
  2. Remove air vane.

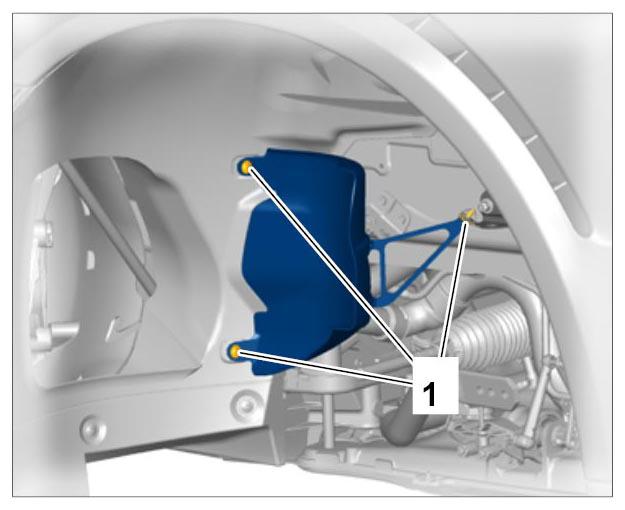

    Fig 3: Identifying Air Vane Fastening Screws
    G10005302Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 2.1. Unscrew fastening screws -1-  .
    2. 2.2. Remove air vane.
  3. Remove upper part of front wheel housing liner (front part).
    1. 3.1. Unscrew fastening screws -1 -  and -2-  .
    2. 3.2. Remove upper part of front wheel housing liner (front part).

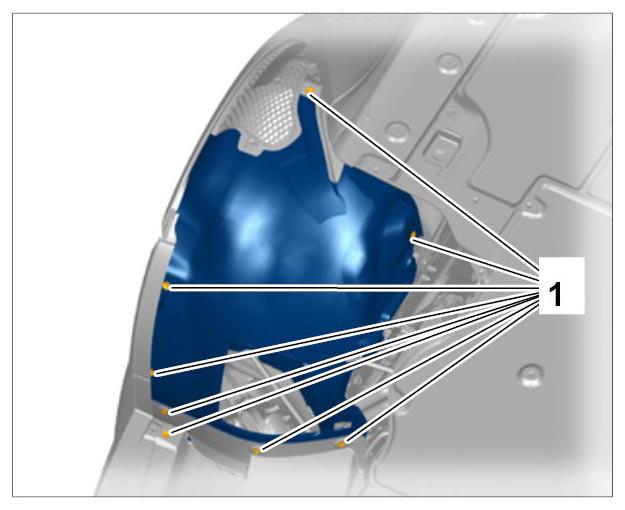

    Fig 4: Identifying Upper Part Of Front Wheel Housing Liner Fastening Screws (Front Part)
    G10005303Courtesy of PORSCHE CARS NORTH AMERICA, INC.
