WM 505519 Removing And Installing Wing (Except CARRERA "Edition", CARRERA Cabriolet "Edition", CARRERA 4 "Edition", CARRERA 4 Cabriolet "Edition")
>>
Removing Wing
>>
Releasing Wing From A-Pillar
Releasing Wing From A-Pillar
Unscrew fastening screws
-9-
at the A-pillar and remove the wing
-1-
.

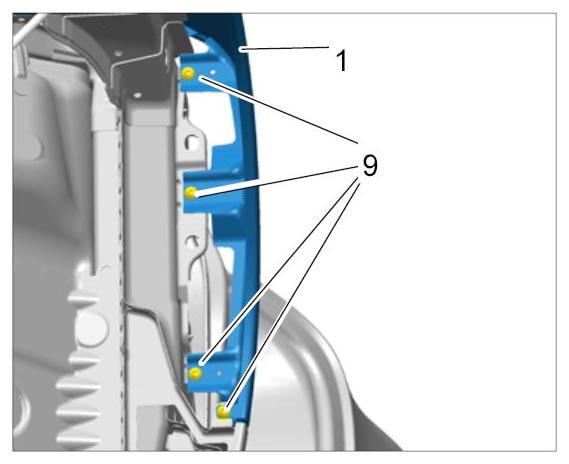

Fig 1: Identifying A-Pillar Wing Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
