Releasing Bottom Of Wing

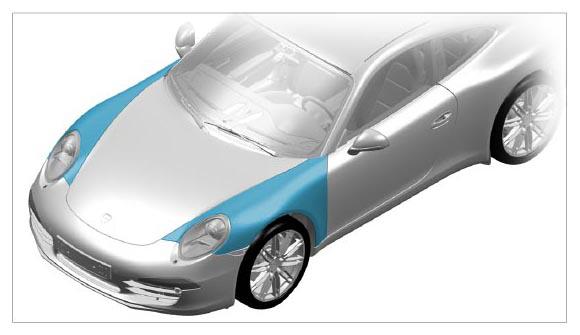

Fig 1: Identifying Vehicle Wing

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrew fastening nuts -5- on the wing strut -4- and bracket -2, 3- .
Remove the wing strut -4- .
Unscrew fastening screws -6- on the bracket -2, 3- .
Remove the bracket -3- .
Unscrew fastening nut -7- on the bracket -2- .
Remove the bracket -2- .

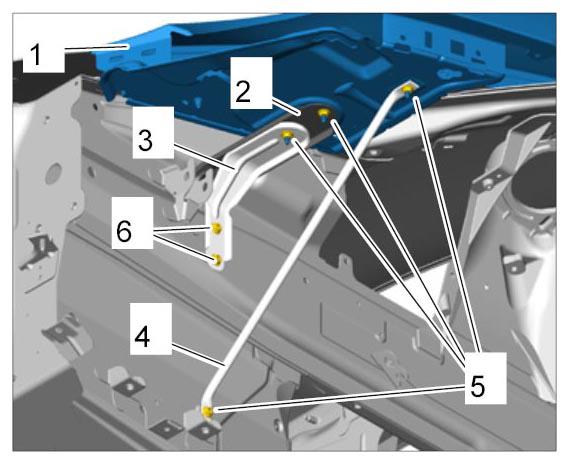

Fig 2: Identifying Bottom Of Wing Parts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
