Preparing Spring Strut Mount For Installation

Prepare bonding areas on the spring strut mount for bonding. → WM 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE (EXCEPT CARRERA "EDITION", CARRERA CABRIOLET "EDITION", CARRERA 4 "EDITION", CARRERA 4 CABRIOLET "EDITION")

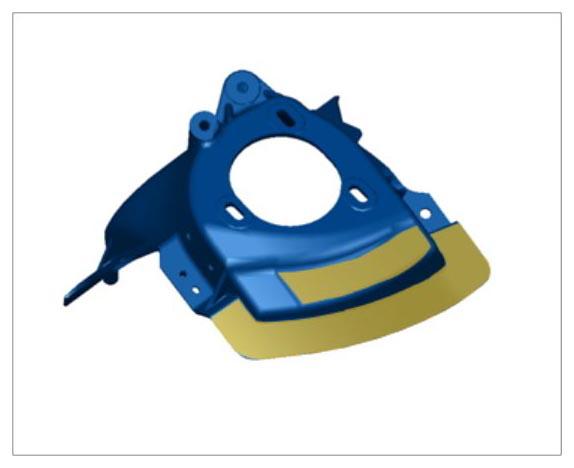

Fig 1: Identifying Spring Strut Mount Bonding Area (1 Of 2)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

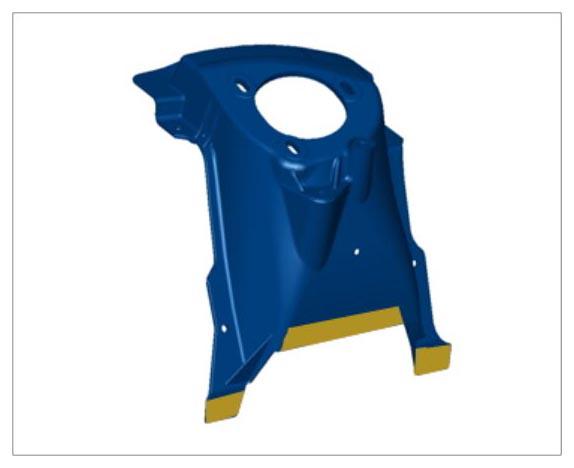

Fig 2: Identifying Spring Strut Mount Bonding Area (2 Of 2)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
