Preparing Connection Areas Of Body For Installing Spring Strut Mount

Position spring strut mount using the straightening system.

1. 1.1. Drill bores for the rivets through the existing holes. → Diameter: 6.5 mm
2. 1.2. Offset bore -1-  so that it is moved outward slightly -arrow A-  .

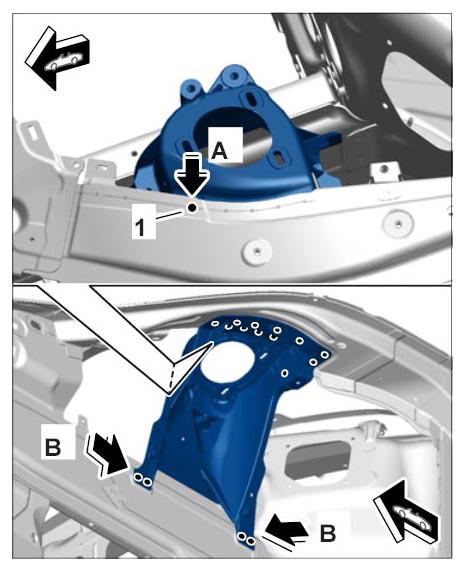

   Fig 1: Locating Drilling Holes Areas

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 1.3. Drill two holes -arrows B-  on the supports between the spring strut mount and longitudinal member.

   Offset the bores for the drilled-out rivets -1 and 2-  so that they are moved up slightly.

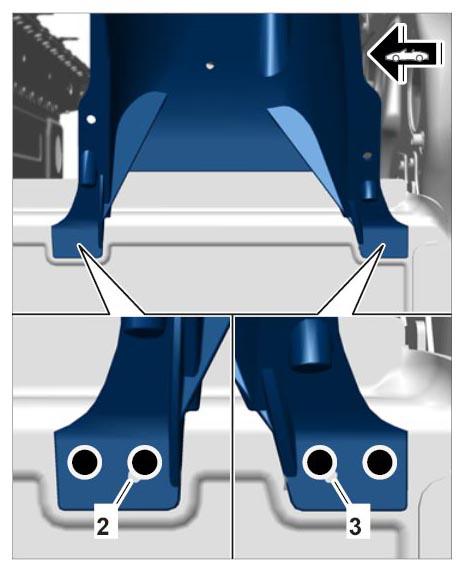

   Fig 2: Identifying Offsetting Bores

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
