Installing Spring Strut Mount

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

1. Apply adhesive. → Application depth: 3.0 mm

   Working with body structural adhesive → WM 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE (EXCEPT CARRERA "EDITION", CARRERA CABRIOLET "EDITION", CARRERA 4 "EDITION", CARRERA 4 CABRIOLET "EDITION")

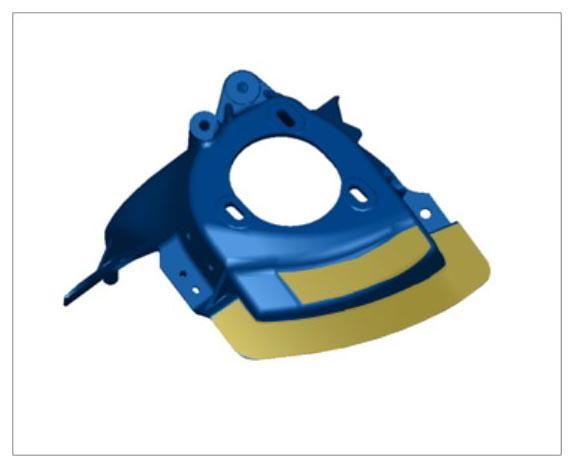

   Fig 1: Identifying Spring Strut Mount Adhesive Applying Area (1 Of 2)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

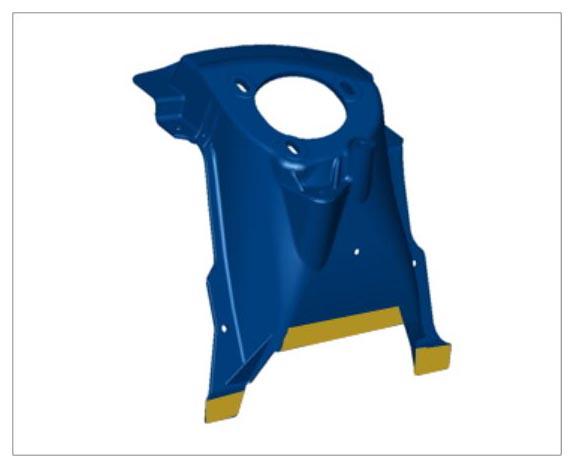

   Fig 2: Identifying Spring Strut Mount Adhesive Applying Area (2 Of 2)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Rivet in spring strut mount. → BLIND RIVET 999.190.227.01

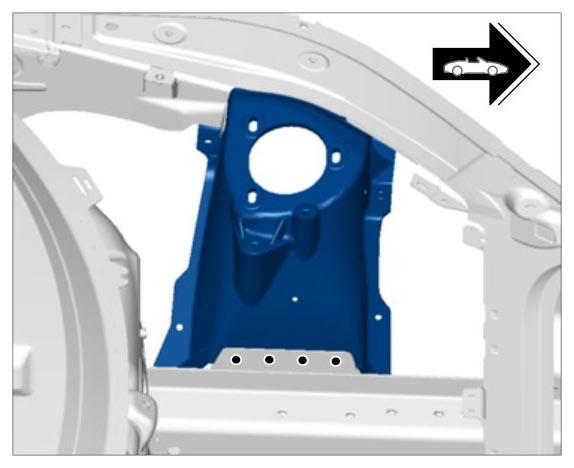

   Fig 3: Identifying Spring Strut Mount Riveting Area (1 Of 2)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

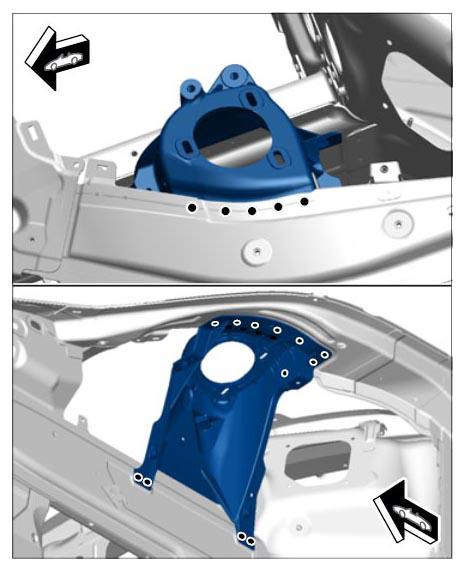

   Fig 4: Identifying Spring Strut Mount Riveting Area (2 Of 2)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
