Installing Floor Front Section

  1. Apply adhesive. → Application depth: 5 mm

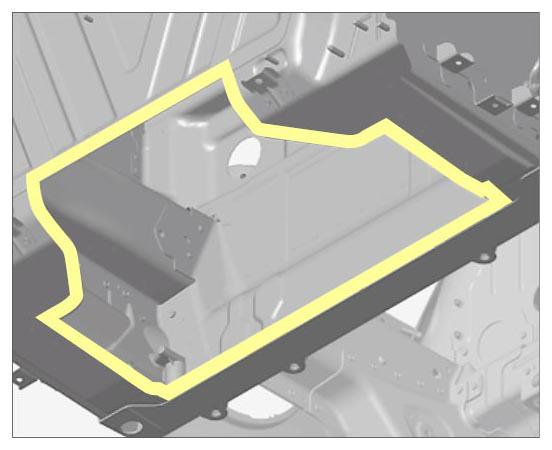

    Fig 1: Identifying Floor Front Section Adhesive Applying Bonding Areas
    G10005224Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Fit floor front section.
  3. Rivet in floor front section.
    1. 3.1. Rivet in areas shown using → BLIND RIVET 999.190.229.01.

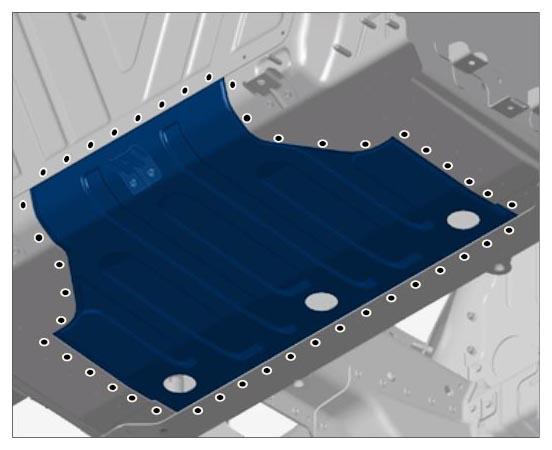

      Fig 2: Identifying Floor Front Section Rivet Areas
      G10005225Courtesy of PORSCHE CARS NORTH AMERICA, INC.
