Removing Front Panel

Information

• Some of the repair illustrations show only one side of the vehicle.
• Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

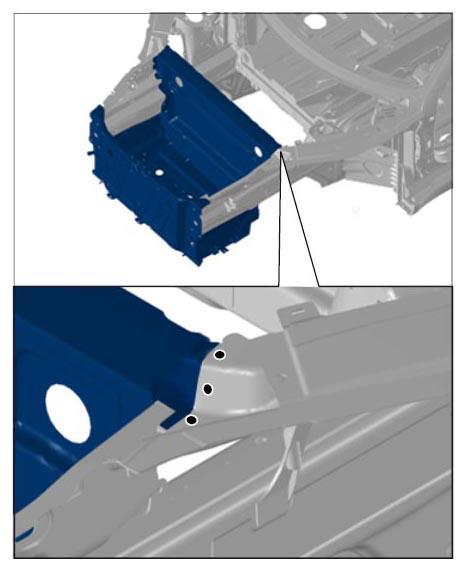

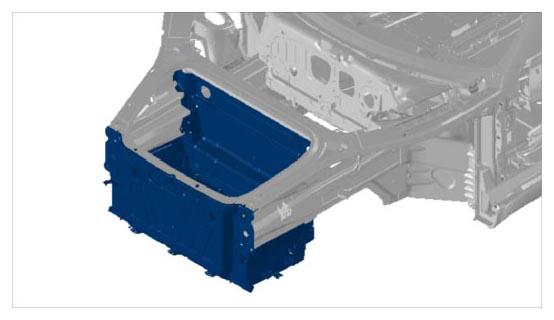

  Fig 1: Identifying Front Panel

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Remove wing joining plate. → Removing Wing Joining Plate
2. Drill through punch rivets using a twist drill Nr.201  .

   Grind down welded seams.

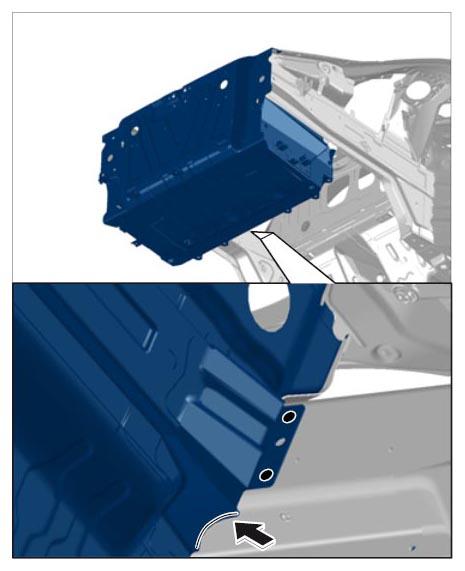

   Fig 2: Identifying Front Panel With Welded Seams

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

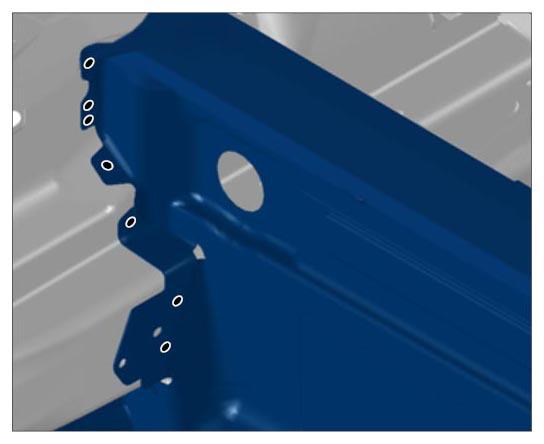

   Fig 3: Identifying Front Panel (1 Of 2)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

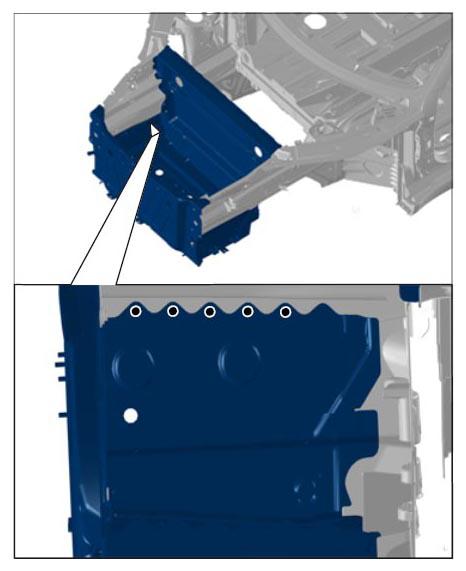

   Fig 4: Identifying Front Panel (2 Of 2)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

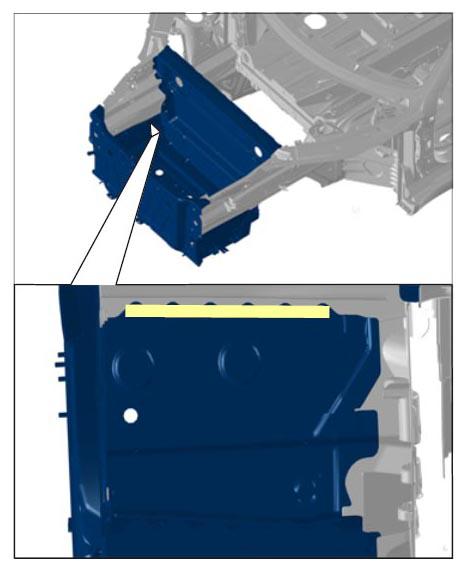

   Fig 5: Removing Front Panel

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

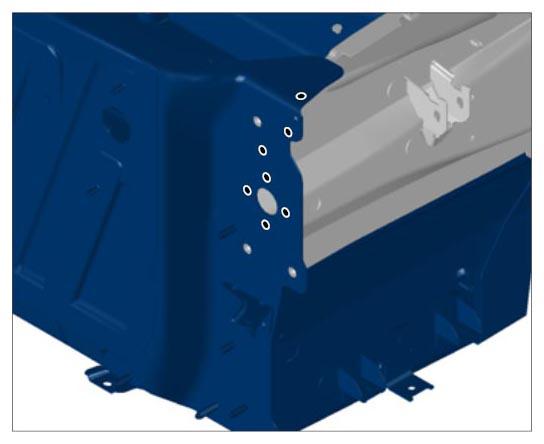

   Fig 6: Milling Off Welded Seam

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

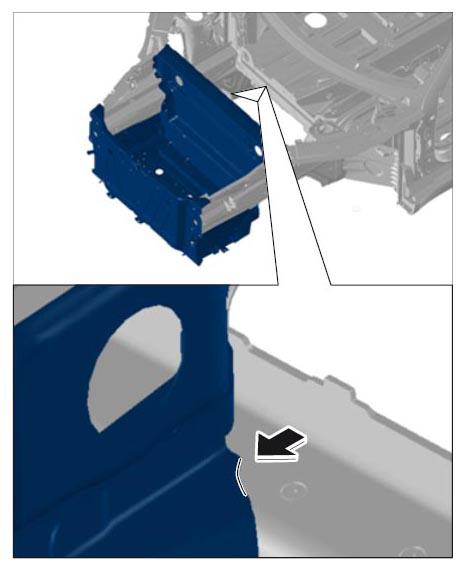

   Fig 7: Identifying Front Panel

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Heat bonding areas. Hot-air blower, Leister-Electron/V.A.G. 1416 WE 1119

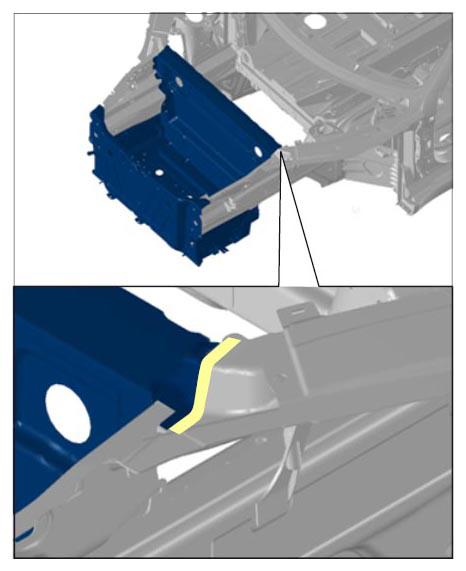

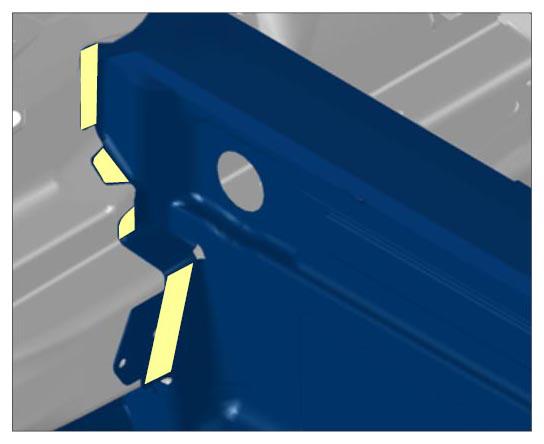

   Fig 8: Identifying Heat Bonding Areas (1 Of 4)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

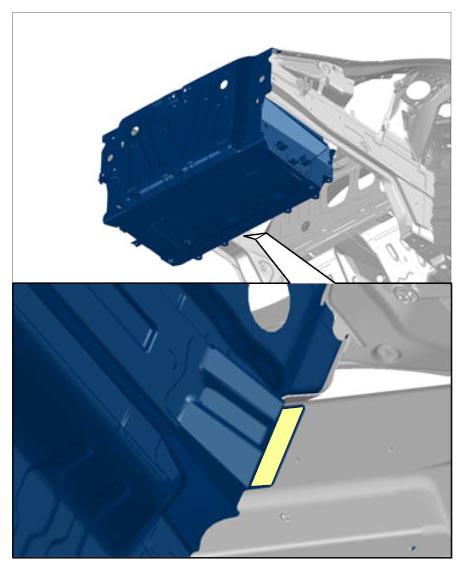

   Fig 9: Identifying Heat Bonding Areas (2 Of 4)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   Fig 10: Identifying Heat Bonding Areas (3 Of 4)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   Fig 11: Identifying Heat Bonding Areas (4 Of 4)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Remove front panel.
