Preparing Front Panel For Installation

Information

• Some of the repair illustrations show only one side of the vehicle.
• Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

Information

Remove component carefully.

The removed part must be re-used during installation.

Information

The rivet positions -1-  will also be used for the wing joining plate during installation.

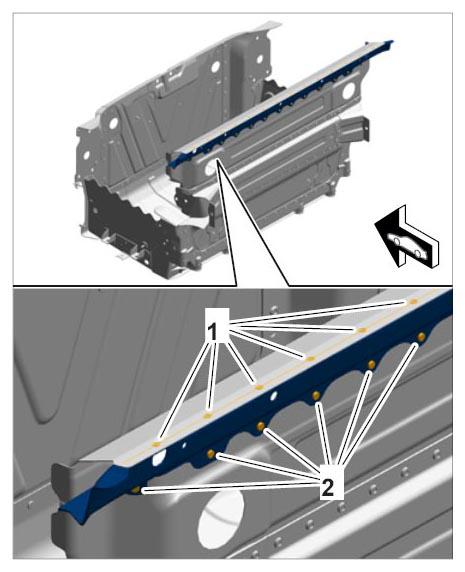

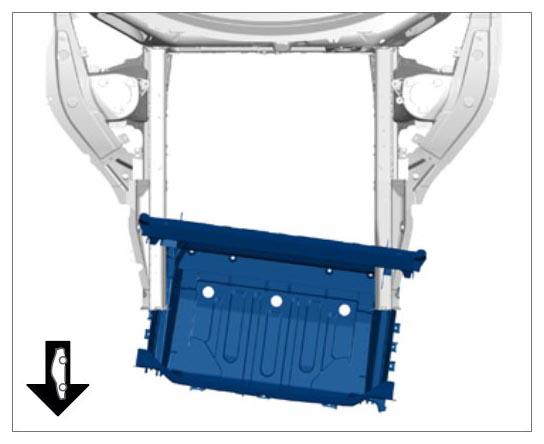

Fig 1: Identifying Cross Member Rivet Positions

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Loosen upper cross member.
   1. 1.1. Drill through punch rivets -1 and 2-  .

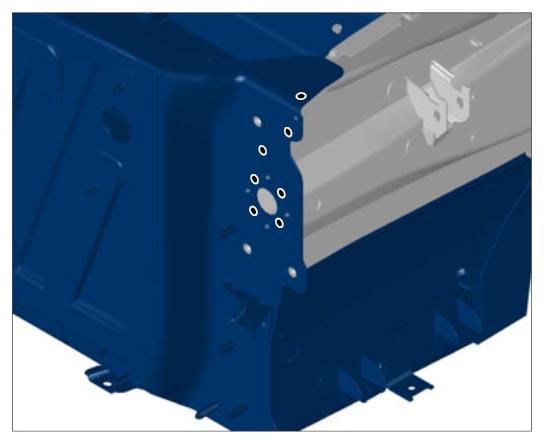

      Fig 2: Identifying Cross Member Rivets Position

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   2. 1.2. Heat bonding areas.

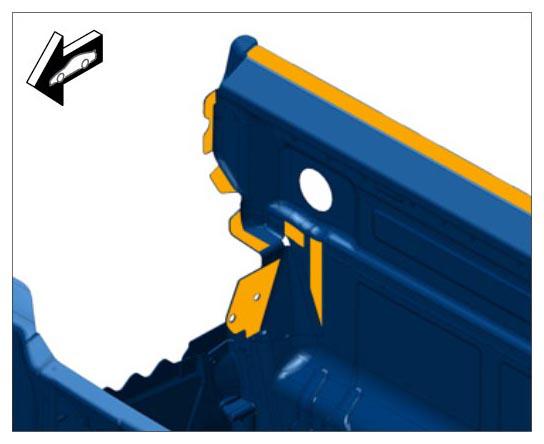

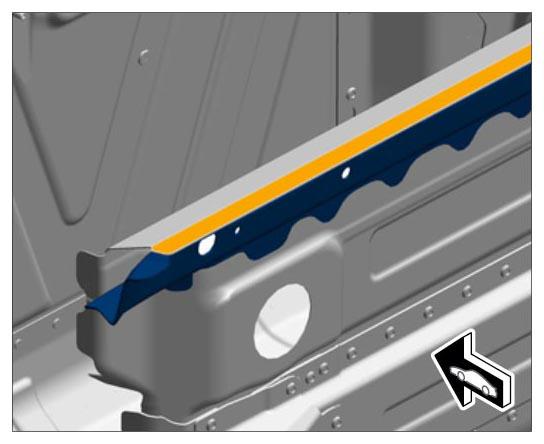

      Fig 3: Identifying Cross Member Heat Bonding Areas

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   3. 1.3. Remove cross member.
2. Fit front panel and secure it to the body.
   1. 2.1. Position front panel.
      1. 2.1.1. Bend sheetmetal flange in slightly on one side.

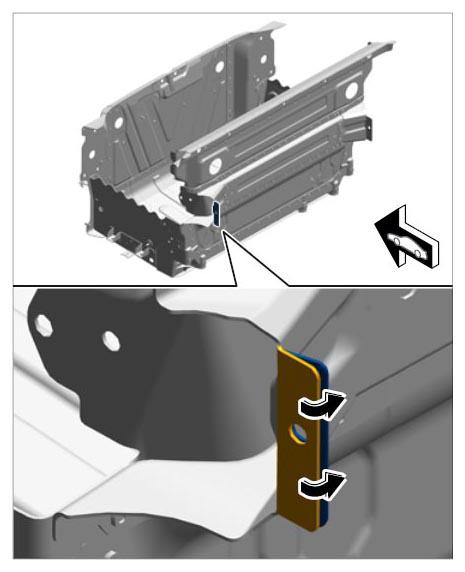

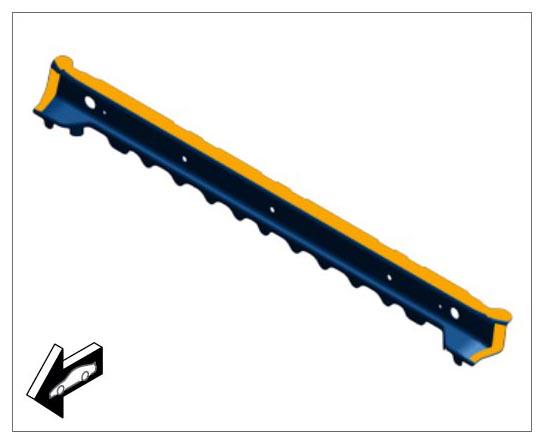

         Fig 4: Bending Sheetmetal Flange

         Courtesy of PORSCHE CARS NORTH AMERICA, INC.
      2. 2.1.2. Insert front panel.

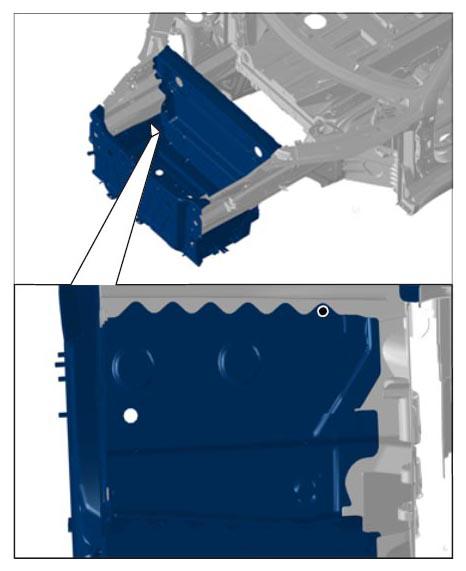

         Fig 5: Inserting Front Panel

         Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   2. 2.2. Drill bores for the rivets through the existing holes. → Diameter: 6.5 mm
3. Drill new holes in the areas shown. → Diameter: 6.5 mm

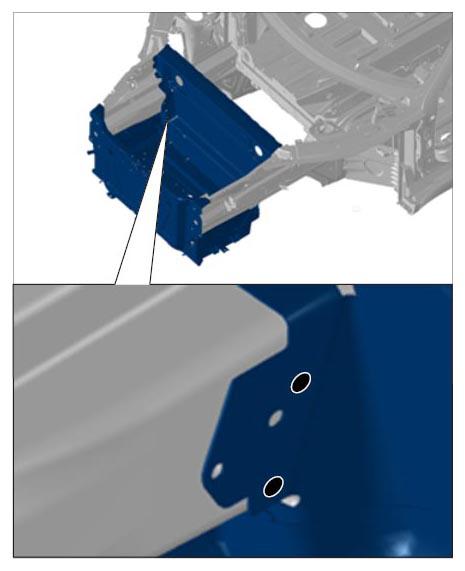

   Fig 6: Identifying Drilling Holes Areas

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

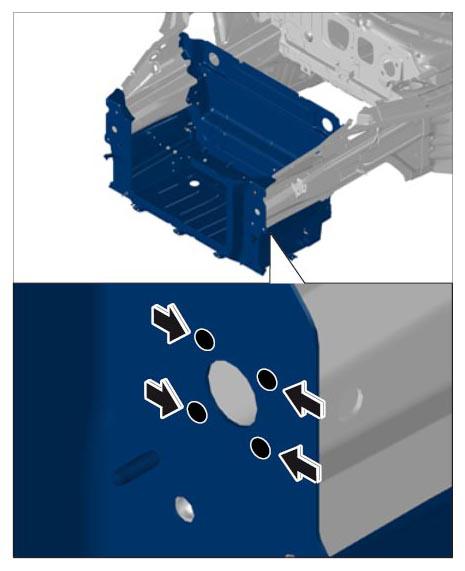

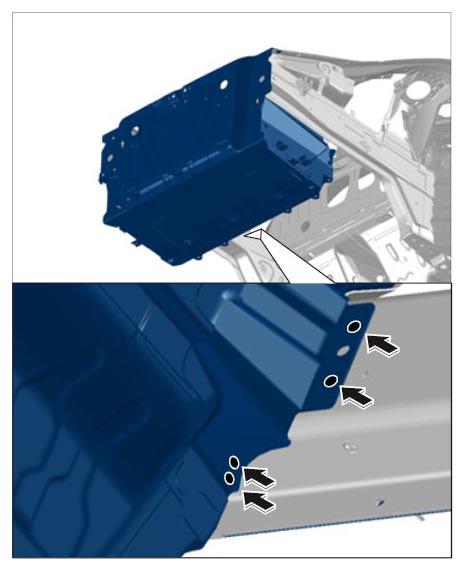

   Fig 7: Locating Drilling Holes (1 Of 4)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

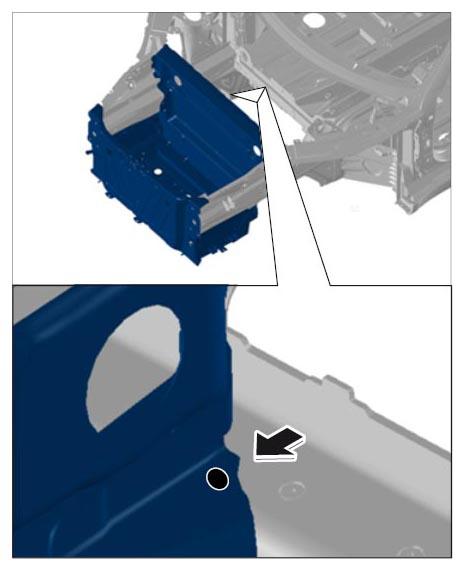

   Fig 8: Locating Drilling Holes (2 Of 4)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

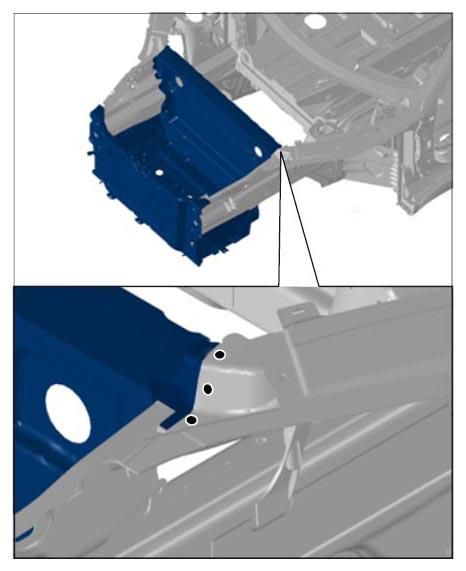

   Fig 9: Locating Drilling Holes (3 Of 4)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   Fig 10: Locating Drilling Holes (4 Of 4)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Fit upper cross member.
   1. 4.1. On the cross member, drill new holes through the existing holes on the body.
      Fig 11: Identifying Front Panel Drilling Holes

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Countersink the bores shown for installing countersunk rivets. Countersink Nr.202
   Fig 12: Identifying Front Panel Counterbores

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Remove cross member and front panel.
7. De-burr the bores.
8. Prepare connection areas for bonding. → WM 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE (EXCEPT CARRERA "EDITION", CARRERA CABRIOLET "EDITION", CARRERA 4 "EDITION", CARRERA 4 CABRIOLET "EDITION")

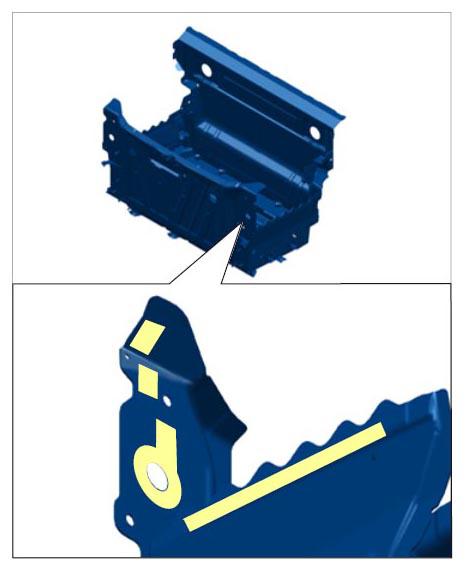

   Fig 13: Preparing Connection Areas For Bonding (1 Of 3)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

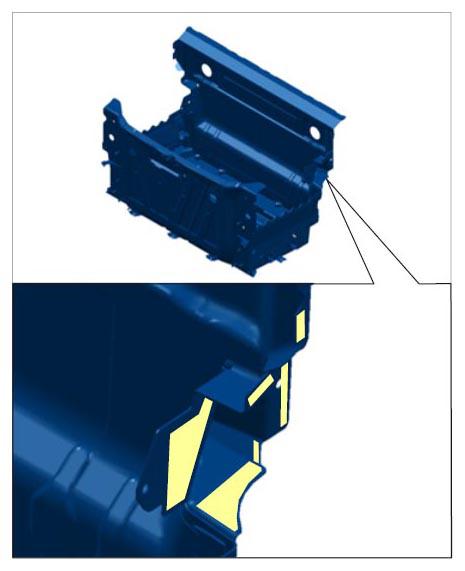

   Fig 14: Preparing Connection Areas For Bonding (2 Of 3)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   Fig 15: Preparing Connection Areas For Bonding (3 Of 3)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   Fig 16: Preparing Connection Areas On Cross Member For Bonding

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
