Preparing Connection Areas Of Body For Installing Front Panel

Information

• Some of the repair illustrations show only one side of the vehicle.
• Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

1. De-burr the bores.
2. Prepare connection areas for bonding. → WM 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE (EXCEPT CARRERA "EDITION", CARRERA CABRIOLET "EDITION", CARRERA 4 "EDITION", CARRERA 4 CABRIOLET "EDITION")

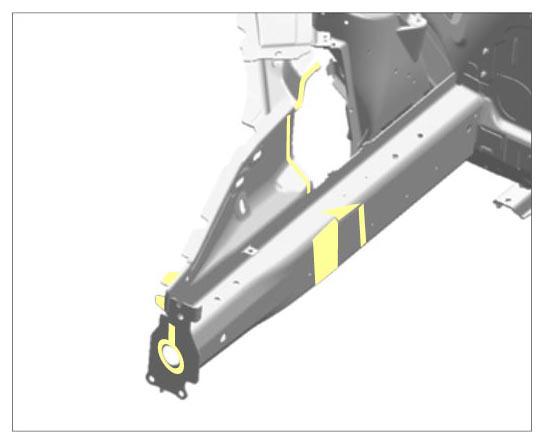

   Fig 1: Preparing Connection Areas For Bonding (1 Of 2)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

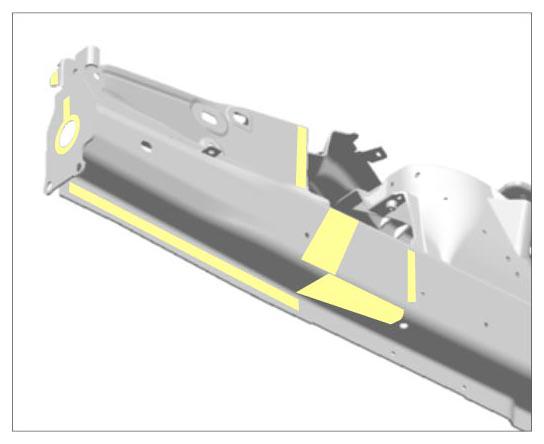

   Fig 2: Preparing Connection Areas For Bonding (2 Of 2)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
