Removing Front Closing Panel

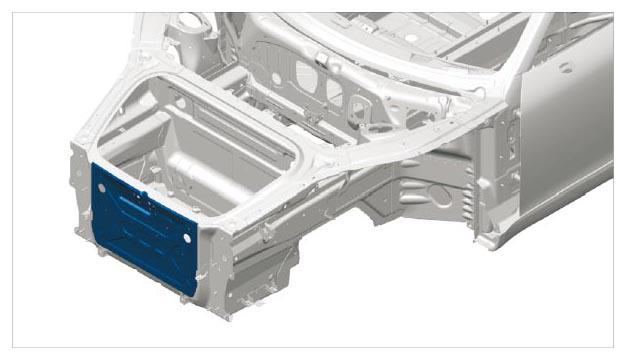

Fig 1: Identifying Front Closing Panel

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Drill through clinch points using a → diameter: 6.5 mm .

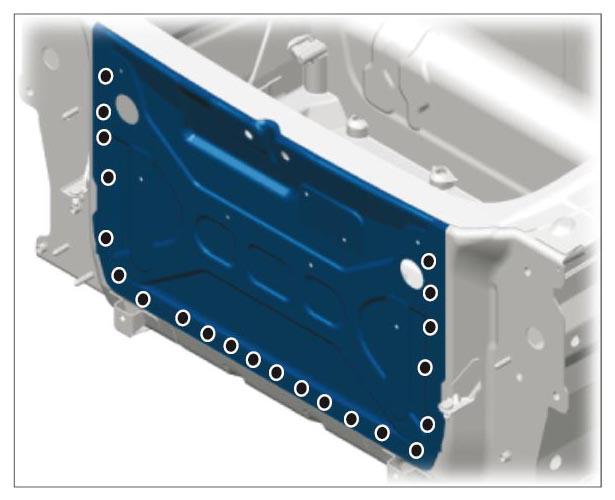

Fig 2: Identifying Closing Panel With Punch Rivets
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Drill through punch rivets using a twist drill Nr.201 .

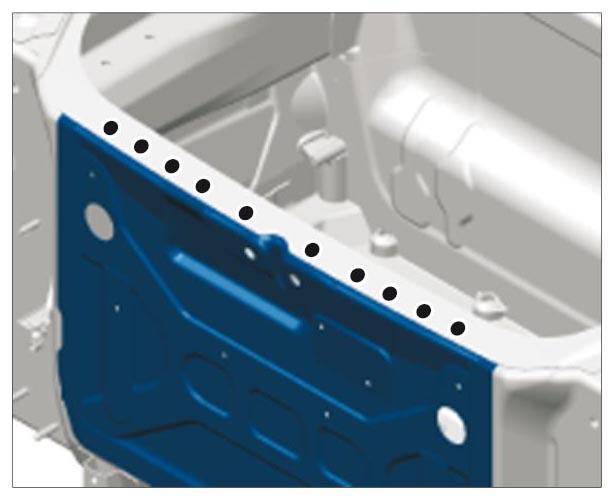

Fig 3: Identifying Closing Panel With Punch Rivets
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove closing panel.
