Installing Front Closing Panel

  1. Apply adhesive.

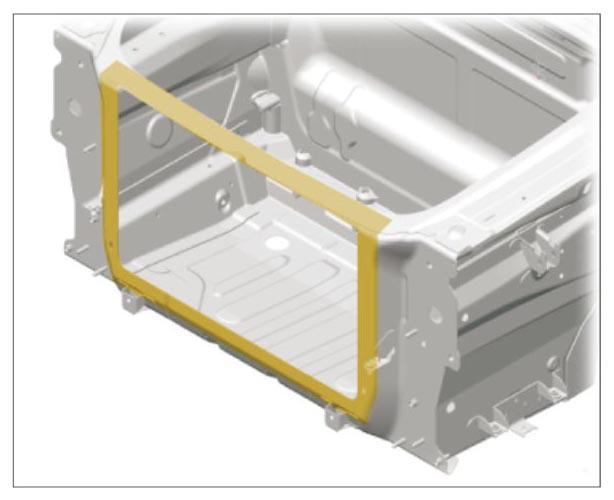

    Fig 1: Identifying Front Closing Panel Connection Areas For Bonding
    G10005170Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Fit closing panel.
  3. Rivet in closing panel. → BLIND RIVET 000.043.207.59
