Removing Actuator For Electric Parking Brake (EPB)

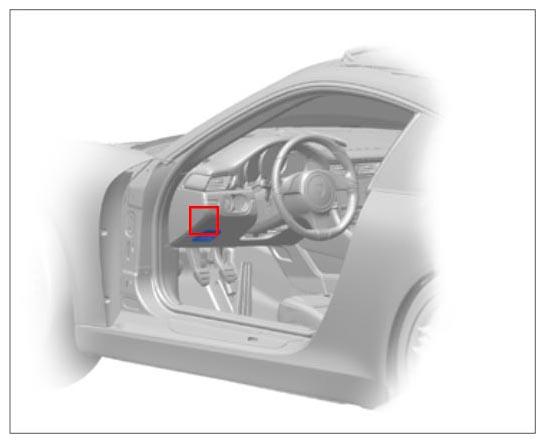

Fig 1: Identifying Actuator For EPB Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Unclip actuator for EPB.

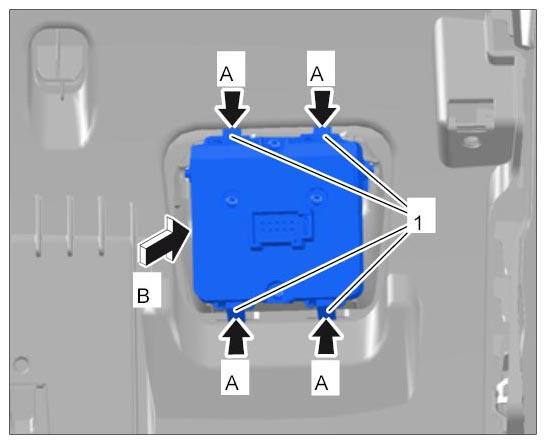

   Fig 2: Removing Actuator For EPB

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 1.1. Press the four retaining clips -A-  and remove actuator for EPB -1-  from the trim panel -B-  .
