Removing Seal For Convertible-Top Compartment Lid

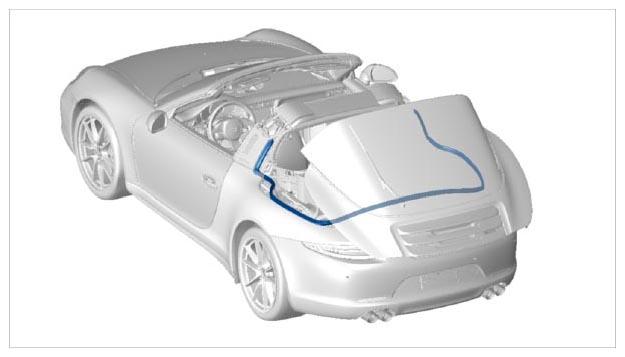

Fig 1: Identifying Seal For Convertible-Top Compartment Lid

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Pull out seal -1-  in the upper area of the trim panel on the Targa crash bar -A-  and pull it off all the way around -B-  .

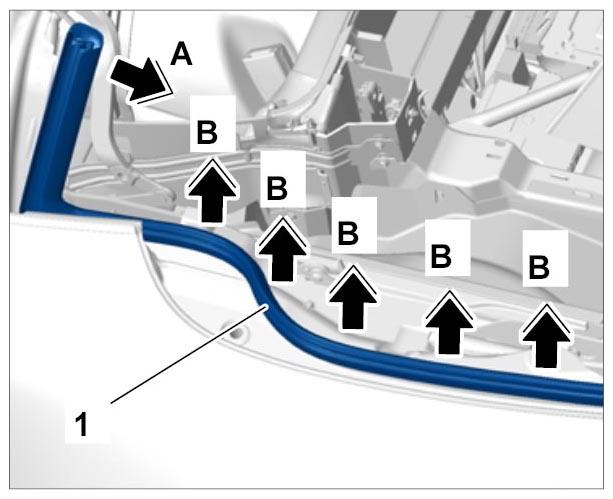

   Fig 2: Pulling Out Convertible-Top Compartment Lid Seal

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
