Removing Actuating Cable

  1. Loosen actuating cable.

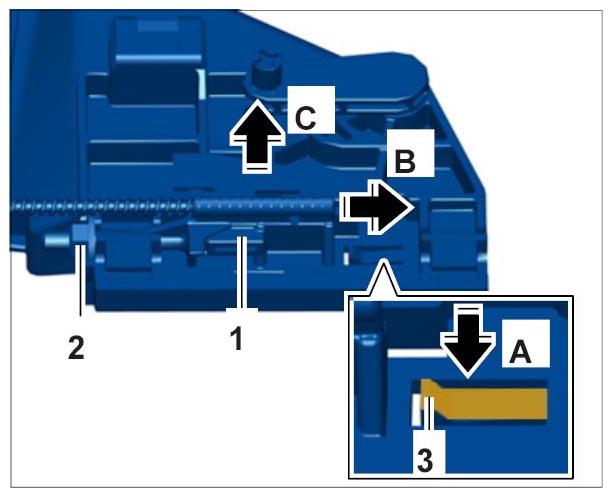

    Fig 1: Loosening Actuating Cable
    G09994638Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 1.1. Press locking lug -3-  (-arrow A-  ).
    2. 1.2. Screw off collar nut -2-  .
    3. 1.3. Push actuating cable -1-  down -arrow B-  and remove it -arrow C-  .
