Filling The Hydraulic System

Information

• When filling the hydraulic system, proceed with utmost care to ensure that dirt does not get into the system.
• Before unscrewing the screw plug, place a cloth underneath the hydraulic unit to catch emerging hydraulic oil.
• The hydraulic convertible top uses a closed hydraulic system. In general, the hydraulic system will need to be filled only if the hydraulic circuit was opened (after parts replacement). Only Original Porsche hydraulic oil → OIL must be used when changing or topping up the hydraulic oil.

Information

When screwing in the screw plug, check that the seal is touching the screw head.

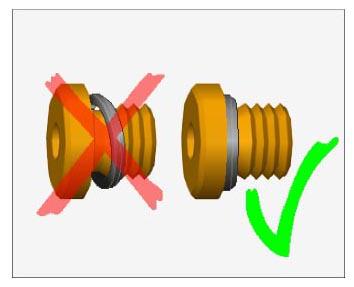

Fig 1: Identifying Seal On Screw Plug (Correct And Incorrect)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Disconnect hydraulic pump.
2. Fill the hydraulic pump.

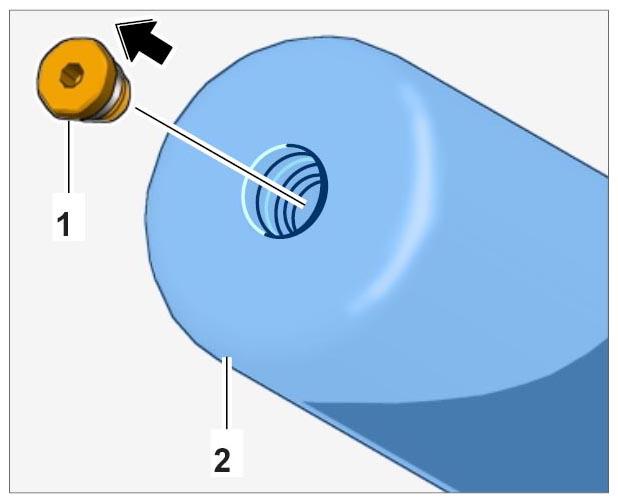

   Fig 2: Removing Screw Plug Of Hydraulic System

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

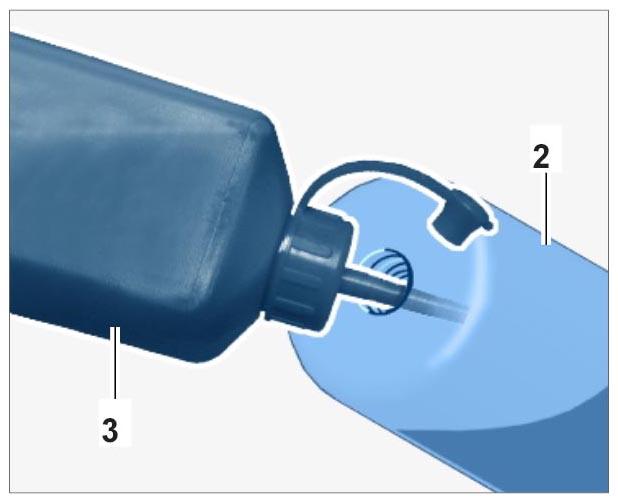

   Fig 3: Filling Hydraulic Pump

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 2.1. Tilt the hydraulic oil tank. The oil filler screw must be above the fluid level.
   2. 2.2. Unscrew screw plug -1-  .
   3. 2.3. Fill the hydraulic oil tank -2-  with Original Porsche hydraulic oil -3-  .
   4. 2.4. Screw in screw plug -1-  and tighten to the specified tightening torque. → Tightening torque: 1 Nm (0.5 ftlb.)
3. Check hydraulic oil level.
4. Ventilate hydraulic oil tank.
