Installing Hydraulic Pump

Information

• The correct installation position of the lines is marked on the pump with numbers.
• Fit the lines so that the numbers on hoses and connections match.

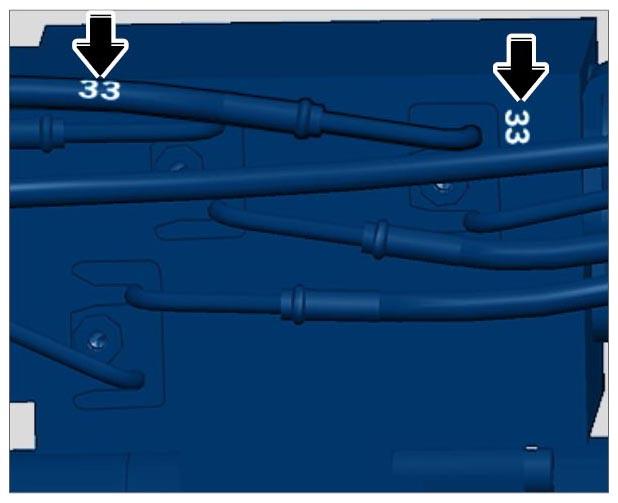

  Fig 1: Locating Numbers On Hoses Of Hydraulic Pump

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Installation is performed in reverse order to removal.

   Tightening torque 3.5 Nm (2.5 ftlb.) +1.5 Nm (+1 ftlb.)

   Tightening torque 9.7 Nm (7.5 ftlb.) +/-0.9 Nm (+/-0.5 ftlb.)
