Installing Microswitches On Convertible-Top Compartment Lid Cylinders

Fit microswitch at the correct position on the hydraulic cylinder -2- .

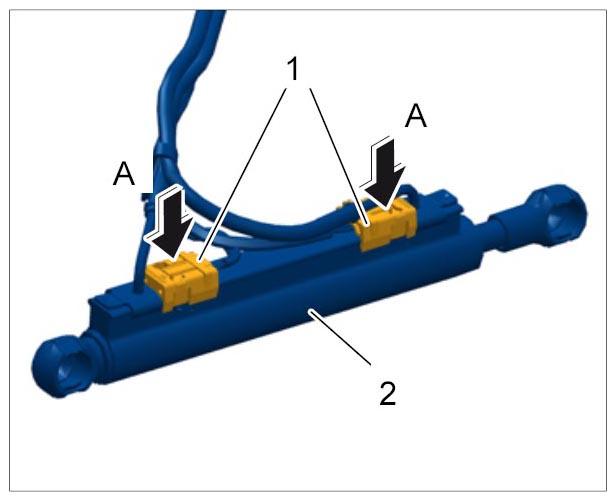

Fig 1: Installing Microswitches
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press retaining clips -1- onto the microswitches -A- until the clips engage securely.
Information

Check that the water drip pan is seated correctly close to the rear water drain.
Position hydraulic cylinder -2- on the ball joints on the convertible-top compartment lid.

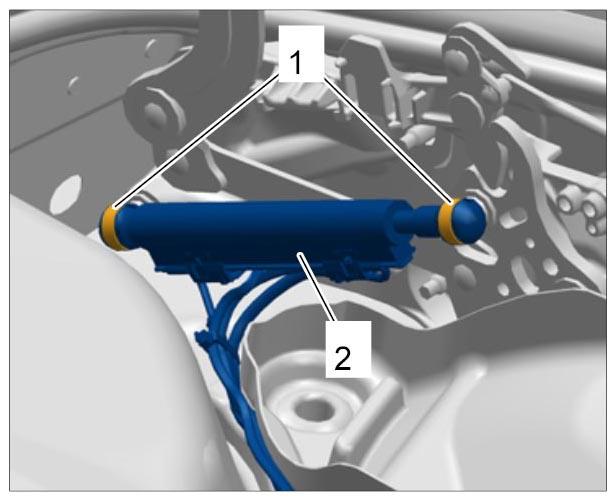

Fig 2: Identifying Hydraulic Cylinder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press safety clips -1- onto the hydraulic cylinder -2- until the clips engage securely.
Position wire harness -1- and hydraulic lines in the convertible top compartment.

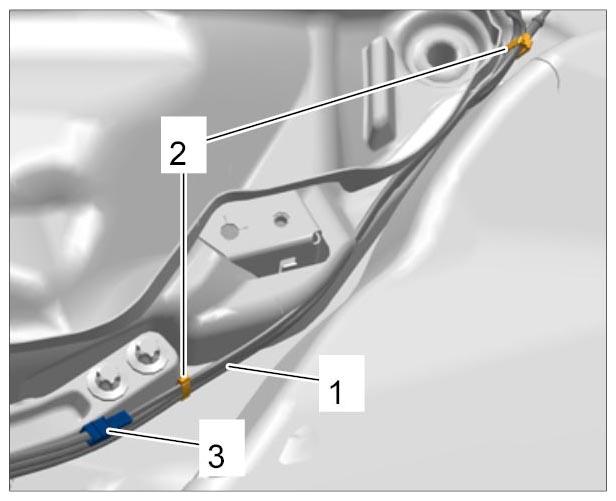

Fig 3: Identifying Wire Harness Electric Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure wire harness -1- with a tie-wrap -2- .
Connect electric plug connection -3- until the connector engages securely.
