Installing Front Retaining Strip

  1. Fit retaining strip -2-  .

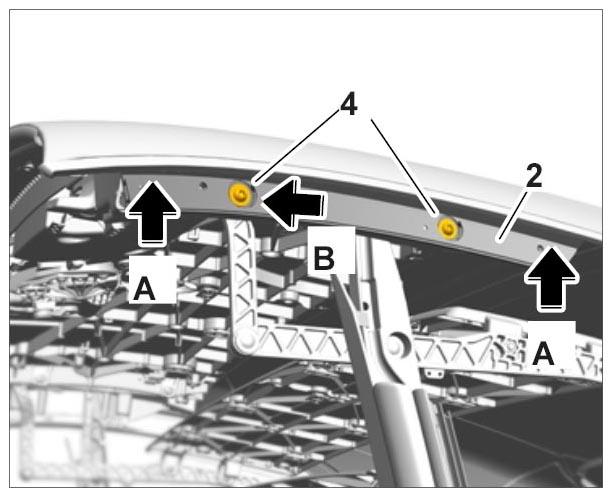

    Fig 1: Installing Front Retaining Strip
    G09994547Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Fit new fastening screws -4-  .
  3. Press the retaining strip completely up -arrows A-  and forward -arrow B-  .
  4. Tighten fastening screws to the specified tightening torque.
  5. Secure convertible top covering -1-  with rivets -3-  on the retaining strip -2-  .

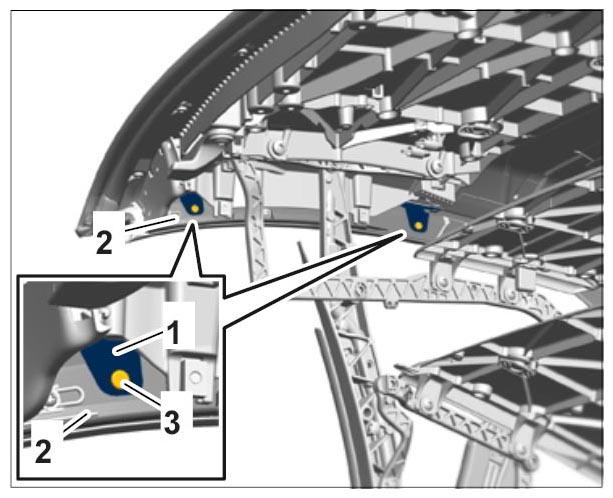

    Fig 2: Identifying Rivets On Front Retaining Strip
    G09994548Courtesy of PORSCHE CARS NORTH AMERICA, INC.
