Removing Lower Lateral Seal

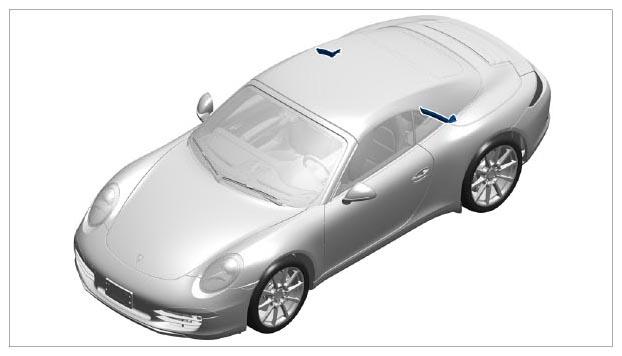

Fig 1: Identifying Lower Lateral Seal

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Install rubber section without damaging it

1. Unhook seal -1-  at the top.

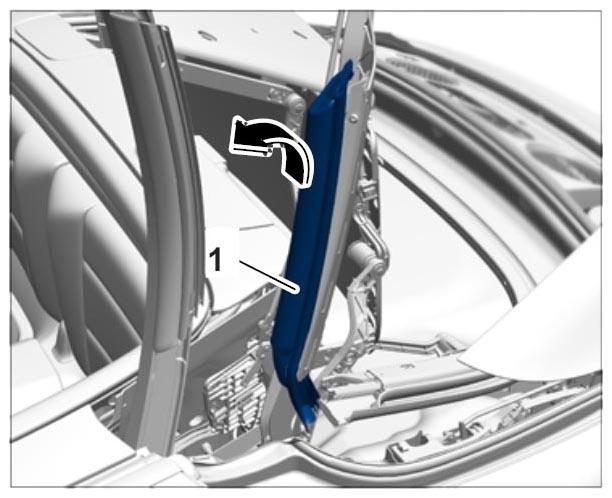

   Fig 2: Unhooking Seal At Top

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Pull the seal -1-  out of the guide.

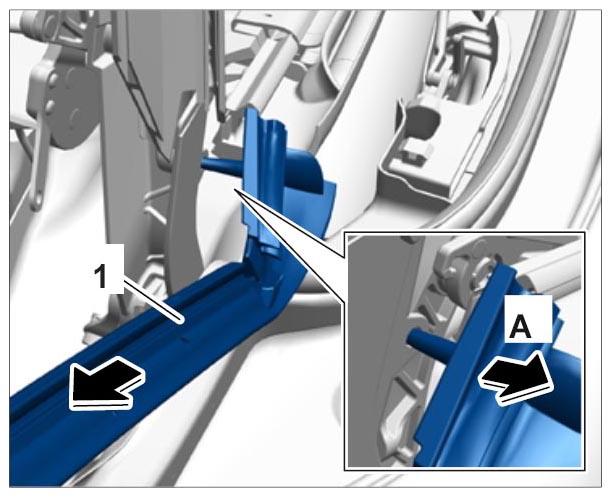

   Fig 3: Pulling Seal Out Of Guide

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 2.1. Carefully pull out the seal at the attachment point. -arrow A-
3. Removing seal
