Removing Front Convertible Top Mount

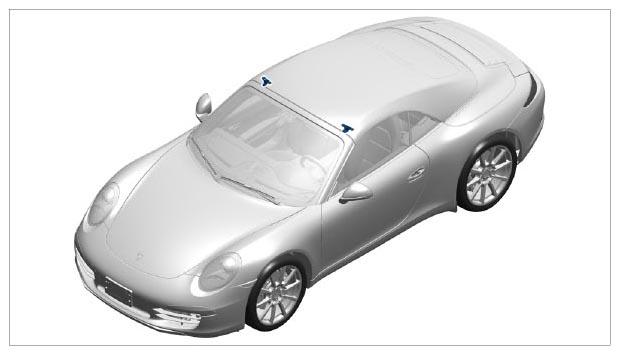

Fig 1: Identifying Front Convertible Top Mount

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Disengage control cable -arrow-  at the roof frame.
   Fig 2: Removing Control Cable

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Unscrew fastening screws -1-  on convertible top mount -2-  .

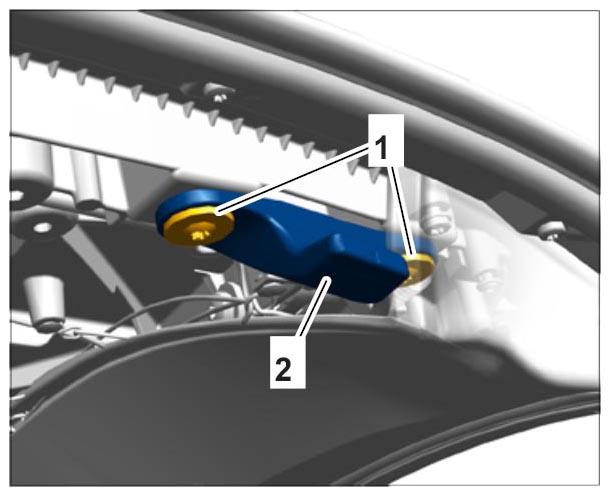

   Fig 3: Identifying Convertible Top Mount And Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Take off convertible top mount.
