Removing Rear Convertible Top Rooflining

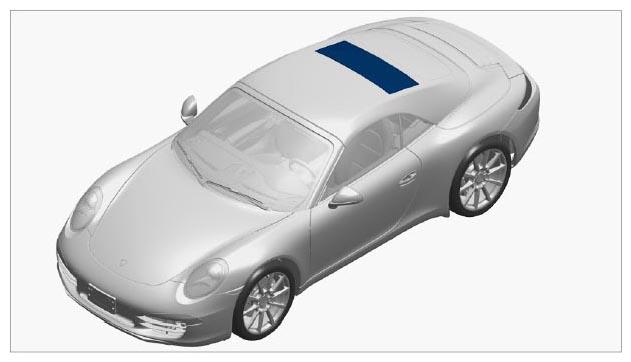

Fig 1: Identifying Rear Convertible Top Rooflining
G09994413Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unclip convertible top rooflining -1-  now.

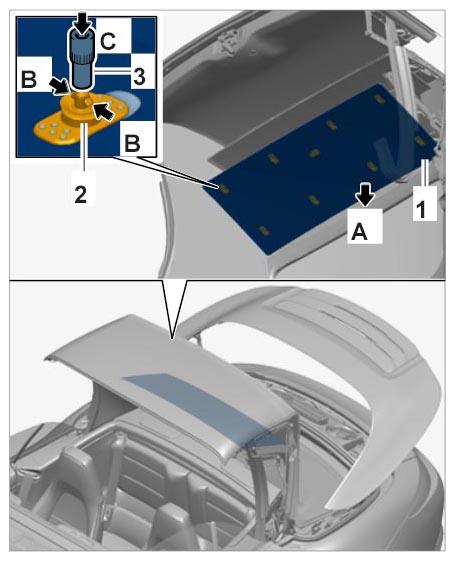

    Fig 2: Removing Convertible Top Rooflining
    G09994414Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    Use a suitable tool as an aid for unclipping the component at the marked areas.

    1. 1.1. Unclip convertible top rooflining -1-  now.
      1. 1.1.1. Press the locking lugs of the clips -2-  on the back of the surface roof strut together. -arrows B-

        Release the clip by pressing on it with a socket wrench (a/f 6) -3-  . -arrow C-

  2. Check fastening points for signs of damage.
  3. Replace damaged clips.
