Removing Front Convertible Top Rooflining

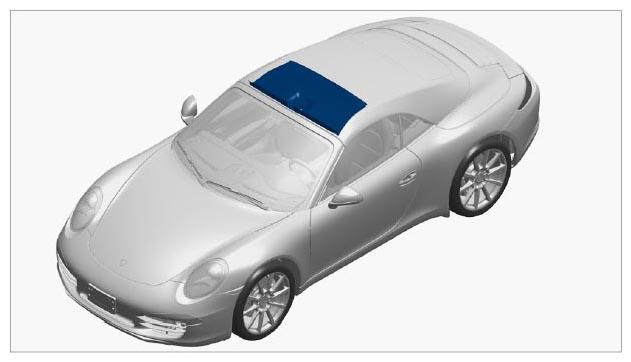

Fig 1: Identifying Front Convertible Top Rooflining
G09994408Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unclip -1-  convertible top rooflining

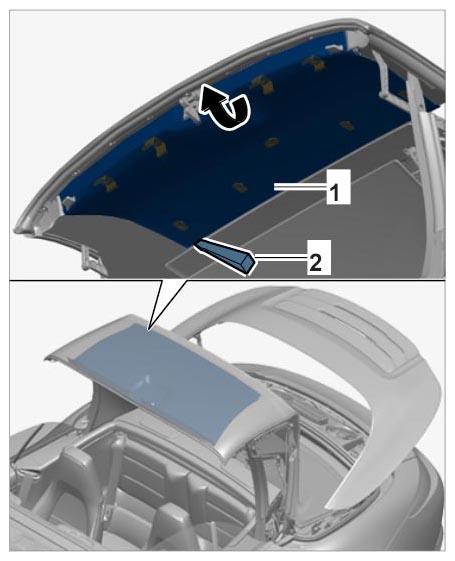

    Fig 2: Removing Front Convertible Top Rooflining
    G09994409Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    Use a suitable tool as an aid for unclipping the component at the marked areas.

    1. 1.1. Detach convertible top rooflining -1-  from the roof frame using an assembly wedge -2-  .
  2. Remove convertible top rooflining -1-  by pulling it forward.
  3. Check fastening points for signs of damage
  4. Replace damaged clips
