Removing Convertible Top Rooflining (Rear Window Frame)

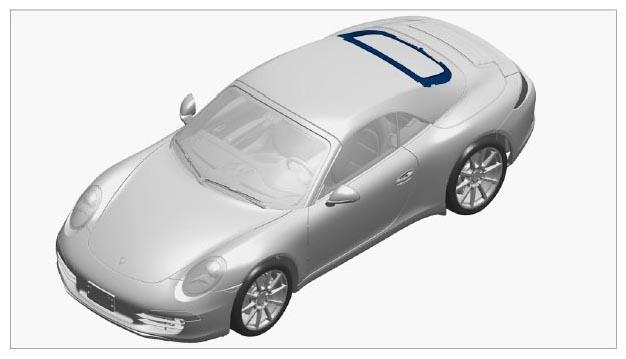

Fig 1: Identifying Rear Window Frame

G09994415

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclip convertible top rooflining (rear window frame) -1- now.

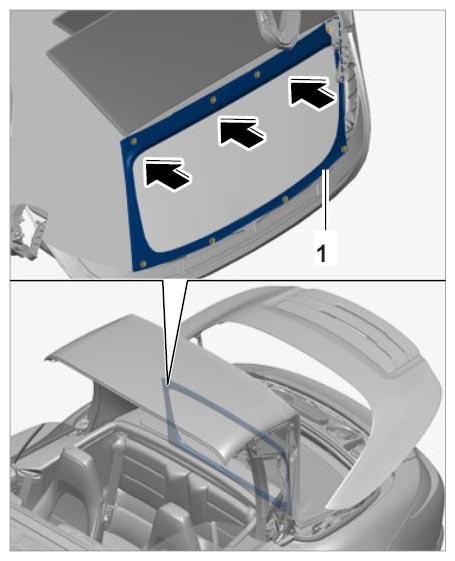

Fig 2: Removing Convertible Top Rooflining (Rear Window Frame)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Use a suitable tool as an aid for unclipping the component at the marked areas.
1. 1.1. Detach convertible top rooflining (rear window frame) -1- from the rear window.
Check fastening points for signs of damage.
Replace damaged clips.
