Removing Center Convertible Top Rooflining

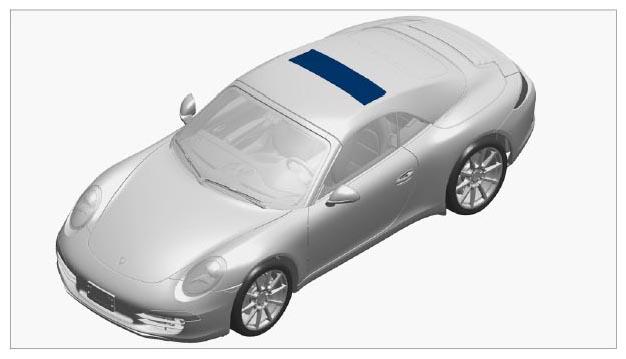

Fig 1: Identifying Center Convertible Top Rooflining
G09994410Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unclip convertible top rooflining -1-  now.

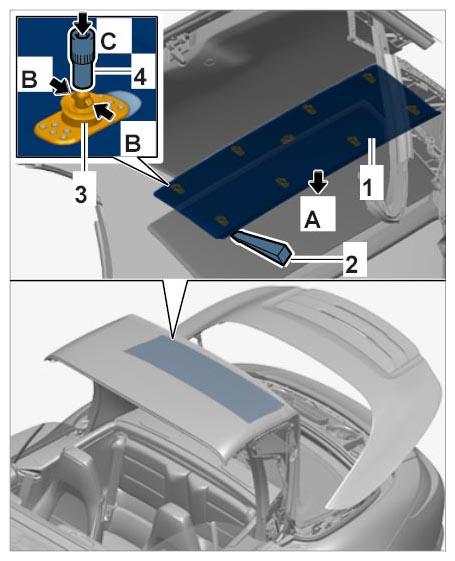

    Fig 2: Removing Convertible Top Rooflining
    G09994411Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 1.1. Detach convertible top rooflining -1-  from the surface roof strut at the Velcro fastener using an assembly wedge -2-  .

      Information

      Use a suitable tool as an aid for unclipping the component at the marked areas.

    2. 1.2. Unclip convertible top rooflining -1-  now.
      1. 1.2.1. Detach Velcro strip on the top of the surface roof strut (convertible top joint).
      2. 1.2.2. Press the locking lugs of the clips -3-  on the back of the surface roof strut together. -arrows B-

        Release the clip by pressing on it with a socket wrench (a/f 6) -4-  . -arrow C-

  2. Check fastening points for signs of damage.
  3. Replace damaged clips.
