61 - Convertible Top, Hardtop -- 911 CARRERA (991)
>>
WM 610119 Removing And Installing Convertible Top (CARR. CABRIO, CARR. S CABRIO, CARRERA GTS CABRIO, TARGA 4, TARGA 4S, TARGA 4 GTS, CARR. 4 CABRIO, CARR. 4S CABRIO, CARR. 4 GTS CABRIO, Turbo S CABRIO)
>>
Technical Values
Technical Values
Location
Description
Type
Basic value
Tolerance 1
Tolerance 2
Fastening screw for hydraulic cylinder
Tightening torque
9.7 Nm (7.5 ftlb.)

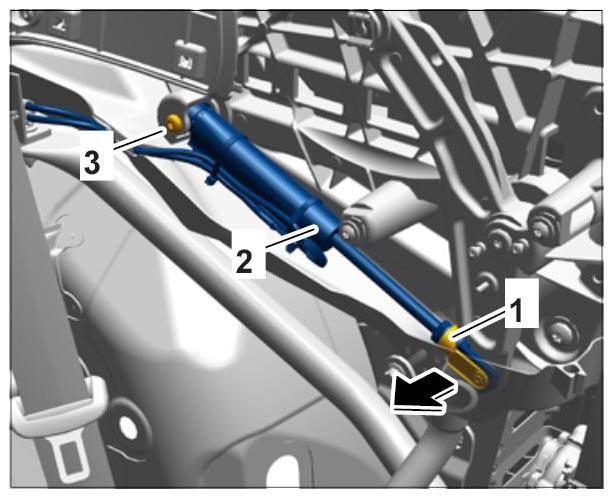

Pulling off safety clips
Fastening screw on convertible top support
Tightening torque
23 Nm (17 ftlb.)

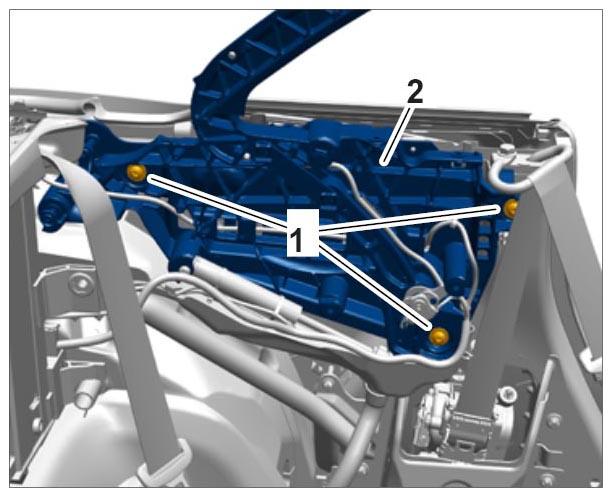

Loosening convertible top support
