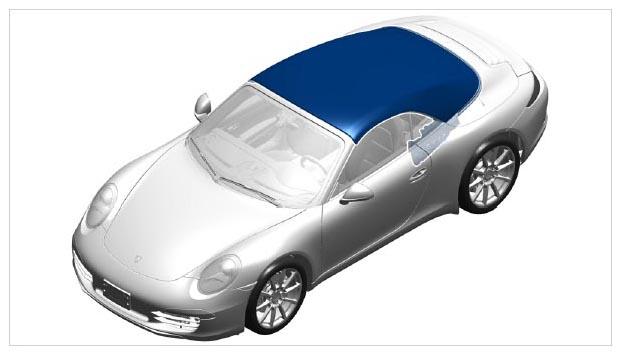

Removing Convertible Top
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

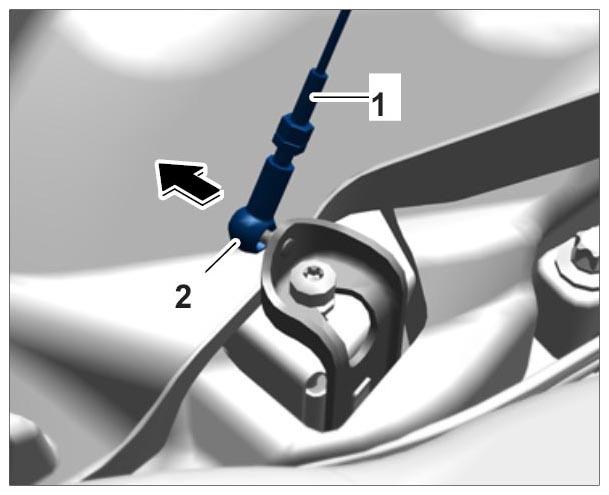

- Unclip tension rope -1-
from rear ball socket -2-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

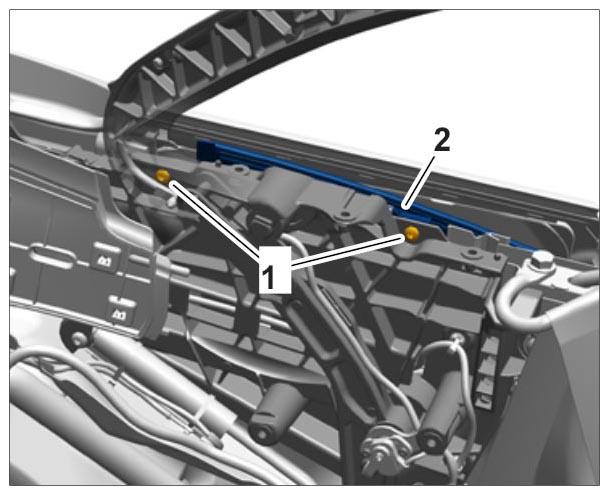

- Unscrew fastening screw for -1-
rear side window -2-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- 2.1. Remove spacers.

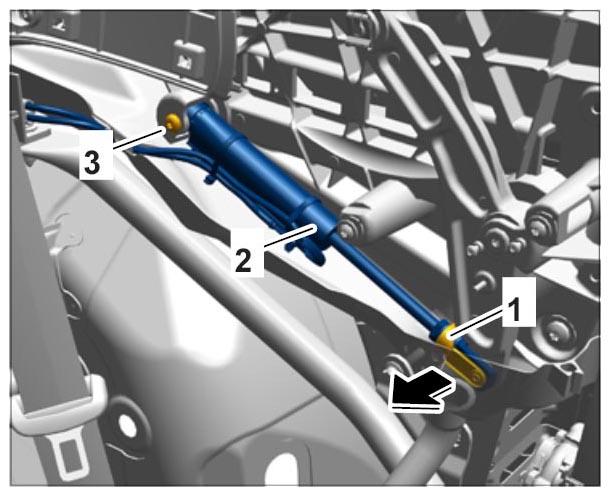

- Remove hydraulic cylinder.
- 3.1. Unscrew fastening screw -3-
from the hydraulic cylinder -2-
.
- 3.2. Pull off safety clips -1-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

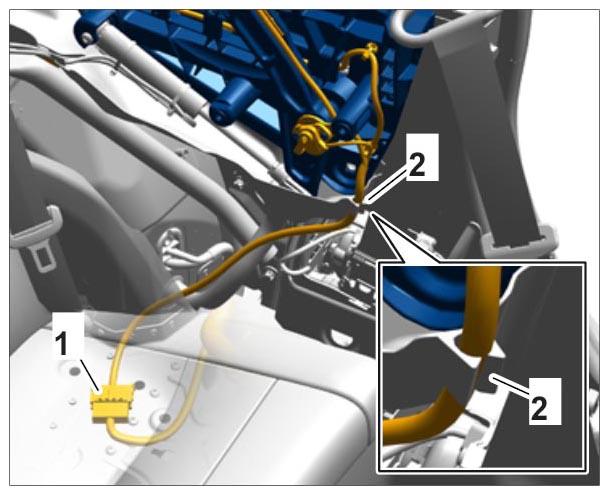

- Disconnect plug connection -1-
and unclip wire harness from the water drip pan bracket -2-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Remove convertible top.

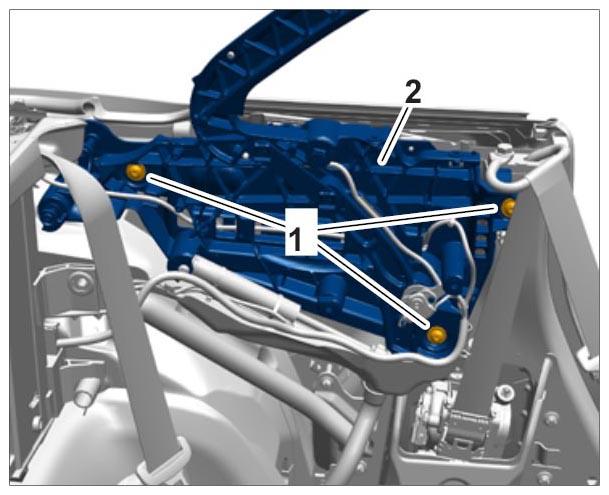

- 5.1. Mark the position of the convertible-top support -2-
and fastening screws -1-
in order to restore the original installation position.
- 5.2. Unscrew fastening screws -1-
from the convertible top support -2-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Lift the convertible top up and off with the help of another person.
