Opening Hydraulic Valve
Opening Hydraulic Valve
Information
Only loosen screws, do not unscrew them completely.
Unscrew shut-off screw by 180°.

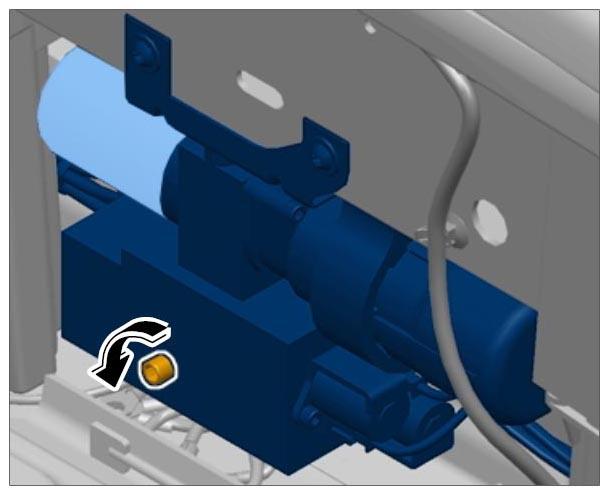

Fig 1: Opening Hydraulic Valve
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
