74 - Seat UPHOLSTERIES, Cover -- 911 CARRERA (991)
>>
WM 741319 Removing And Installing Cover For Front Seat (Folding Sports Bucket Seat) (Except CARRERA "Edition", CARRERA Cabriolet "Edition", CARRERA 4 "Edition", CARRERA 4 Cabriolet "Edition")
>>
Removing Cover For Front Seat
>>
Removing Seat Cushion (Rear Part)
Removing Seat Cushion (Rear Part)

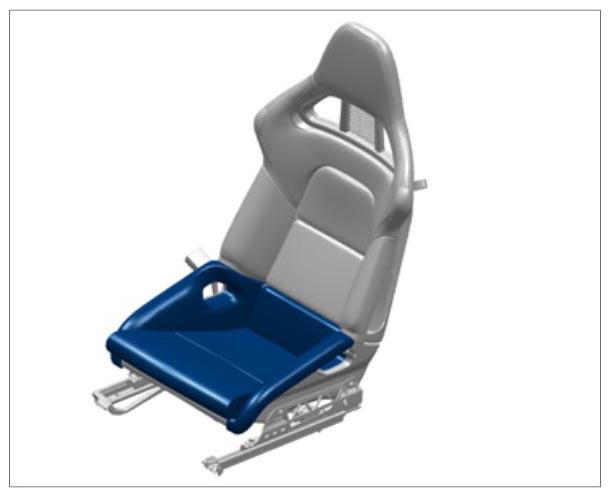

Fig 1: Identifying Seat Cover Installation Position (Folding Sports Bucket Seat)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull seat cushion
-1-
off the Velcro fasteners
-2-
on the seat shell
-3-
(
-arrow-
).

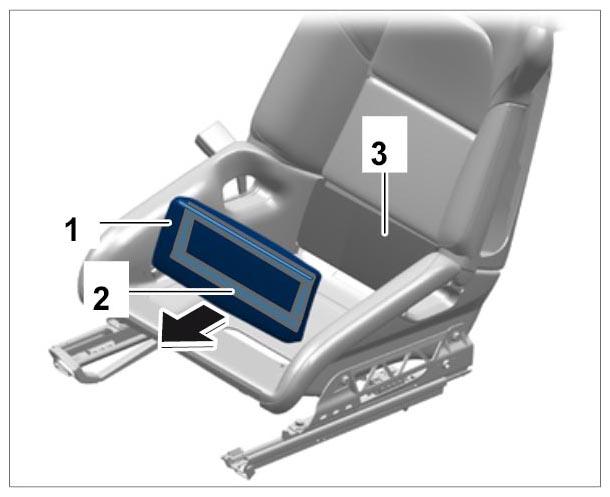

Fig 2: Removing Seat Cushion (Rear Part)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
