Removing Control Unit For Memory Seat Adjustment

NOTE: Voltage drop
  • Risk of irreparable damage to control unit
  • Risk of damage to control unit
  • Fault entries in the control unit
  • Coding in the control unit is aborted
  • Malfunctions in control unit, even during programming

→ Prior to disconnecting the control unit, switch off ignition and remove ignition key.

→ Ensure that the power supply is not interrupted during programming.

→ Connect a battery charger with a current rating of at least → Nominal value: 40 A  to the vehicle battery.

  1. Unscrew fastening screws -1-  on the control unit.

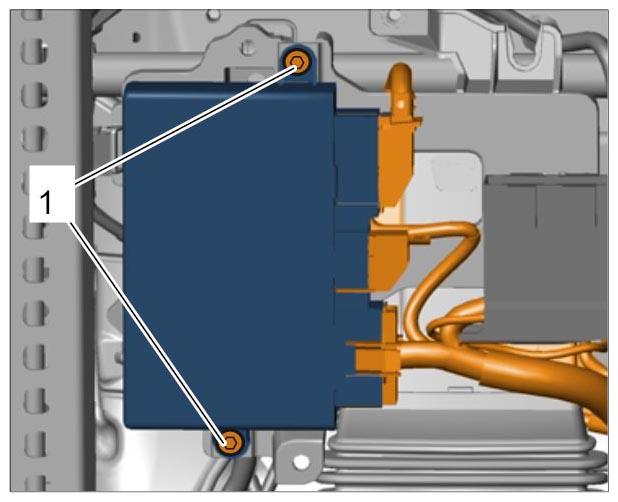

    Fig 1: Identifying Control Unit Fastening Screws
    G09998338Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Release and unplug electric plug connections -2, 3, 4-  .

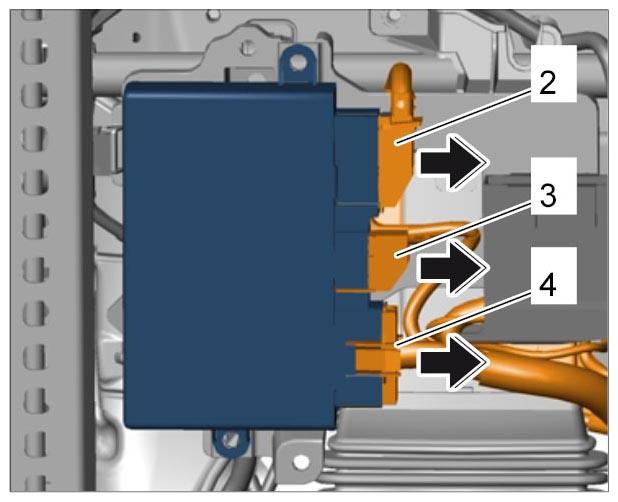

    Fig 2: Disconnecting Electric Plug Connections
    G09998339Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove control unit.
