Installing Control Unit For Memory Seat Adjustment

Plug in electric plug connections -3, 4- until they engage securely.

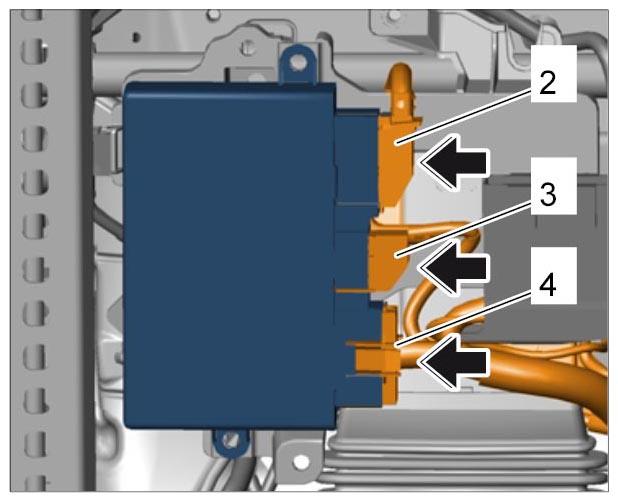

Fig 1: Connecting Electric Plug Connections
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Plug in electric plug connection -2- and lock the securing clip.
Position control unit on the holder.
Screw in and tighten fastening screws -1- on the control unit.

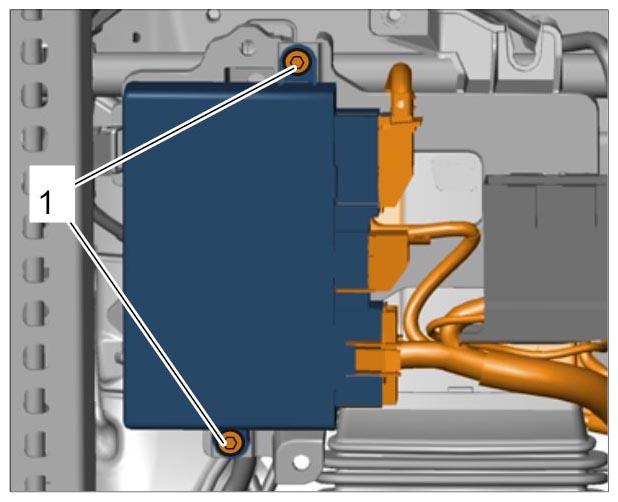

Fig 2: Identifying Control Unit Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
