Installing Motor For Seat Adjustment

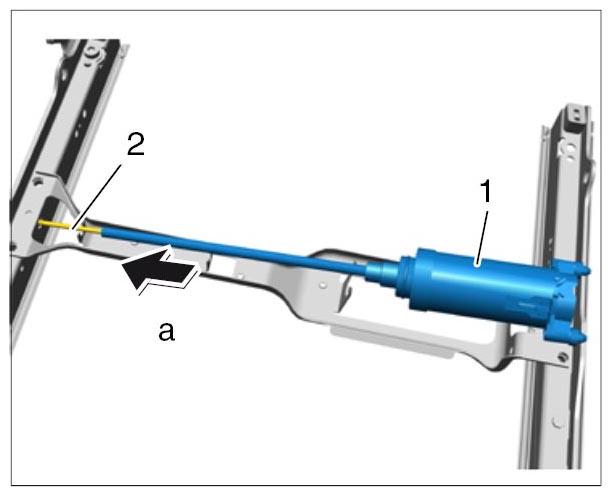

- Slide the seat-adjustment motor -1-
onto the long drive shaft -2-
(-a-
).
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

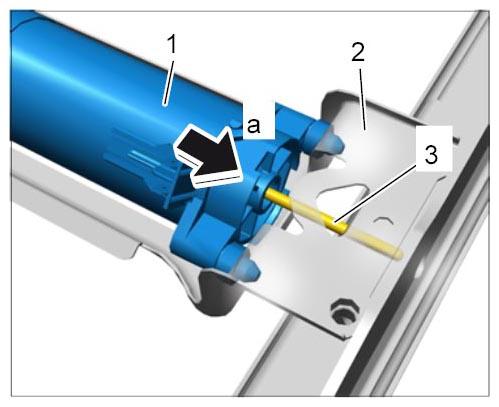

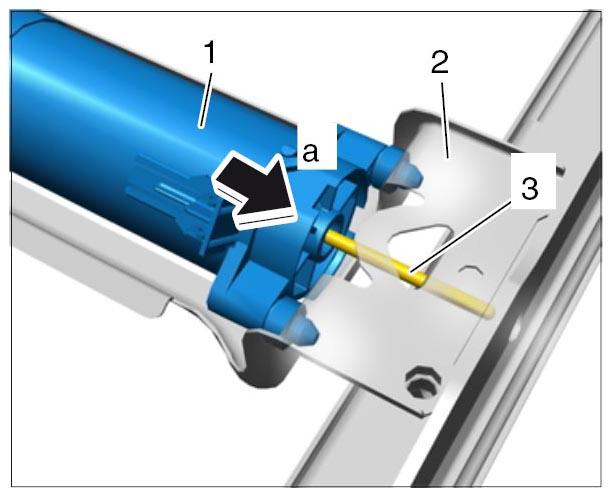

- Fit the seat-adjustment motor -1-
on the short drive shaft -3-
(-a-
) and guide the pins into the correct positions on the holder -2-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

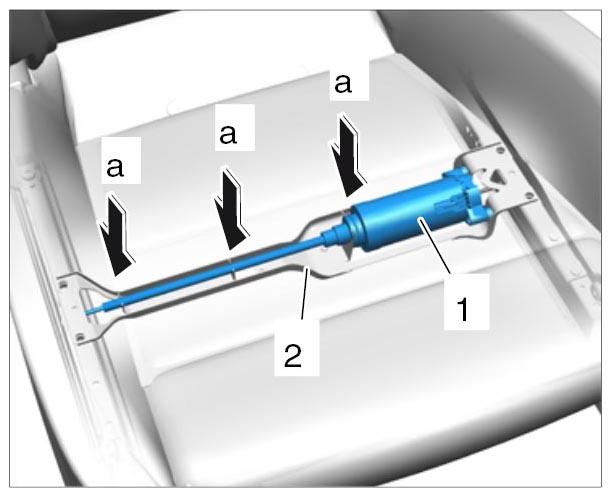

- Press the seat-adjustment motor and shaft guide -1-
into the mountings in the motor holder -2-
(-a-
).
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

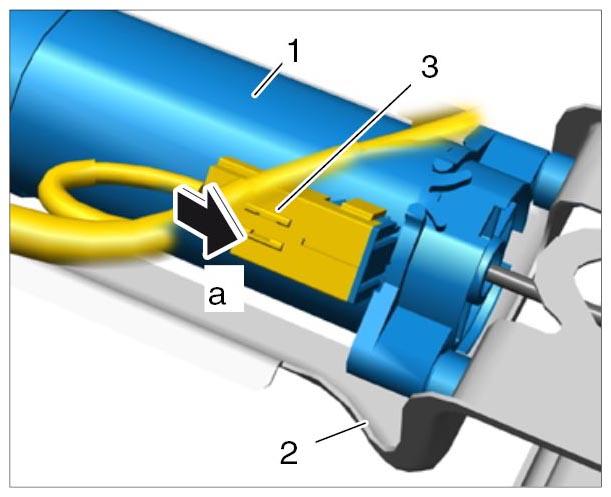

- Connect electric plug connection -3-
to the seat-adjustment motor -1-
(-a-
) until the connector clicks into place.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
