Installing Upper Part Of Lock

Install upper part of lock.

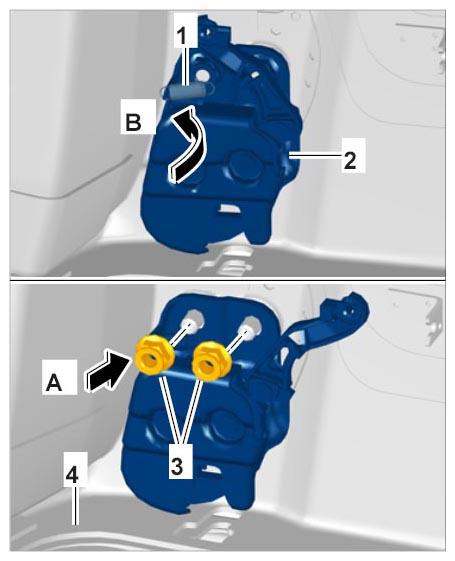

Fig 1: Installing Upper Part Of Lock
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Position upper part of lock -2- on the backrest shell -4- (-arrow A- ).
2. 1.2. Fit fastening nuts -3- and tighten them so that the upper part of the lock -2- can still be moved.
3. 1.3. Adjust upper part of lock. → Installing Upper Part Of Lock
4. 1.4. Engage the tension spring -1- at the upper part of the lock -2- (-arrow B- ).

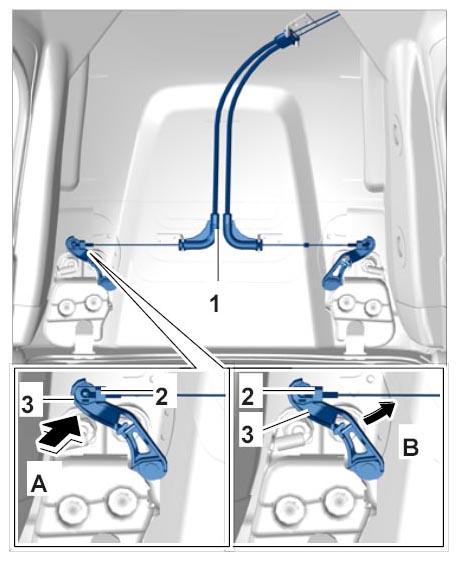

Engage bowden cable at the upper part of the lock.
1. 2.1. Guide bowden cable -1- into the locking clip -2- on the actuating lever -3- (-arrow A- ).
2. 2.2. Swivel the bowden cable -1- 90° and engage it in the locking clip -2- (-arrow B- ).
Check backrest release by pulling the loop. Adjust it if necessary.
Check bonding points -2- on the foam part -1- and apply new adhesive if necessary.

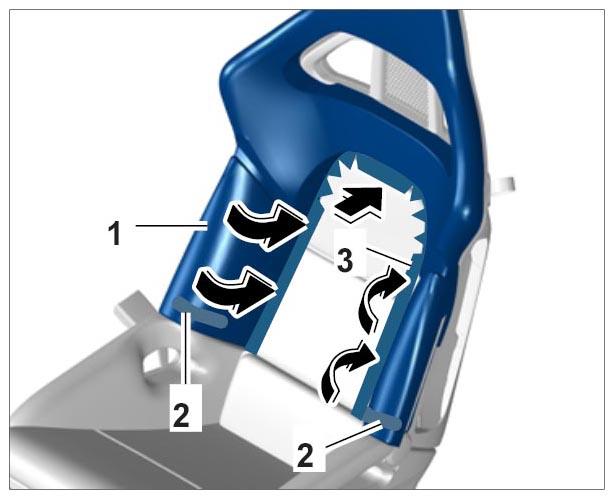

Fig 3: Installing Foam Part Of Backrest
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position foam part -1- (-arrows- ) and press it on at the bonding points -2- .
Align cover -1- with the side bolsters.

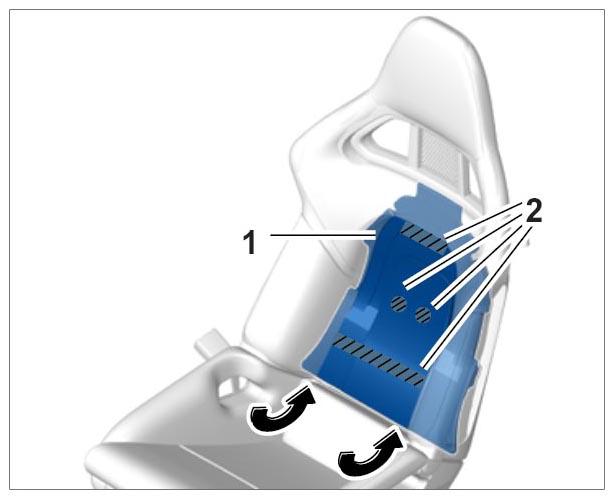

Fig 4: Securing Velcro Fasteners
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Make sure the Velcro fasteners join cleanly.
Press on Velcro fasteners -2- and -3- (-arrows- ).
