Removing Cover For Inner Backrest

  1. Unscrew fastening nuts -1-  and fastening screws -2-  and loosen seat frame slightly.

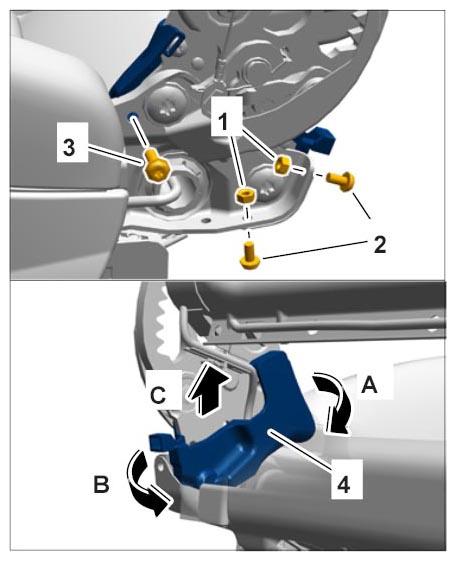

    Fig 1: Removing Inner Backrest Cover
    G09998191Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew fastening screw -3-  .
  3. Unclip cover -4-  at the front -arrow A-  , disengage carefully at the back -arrow B-  and remove it in -direction of arrow C-  .
