Installing Trim Panel For Seat

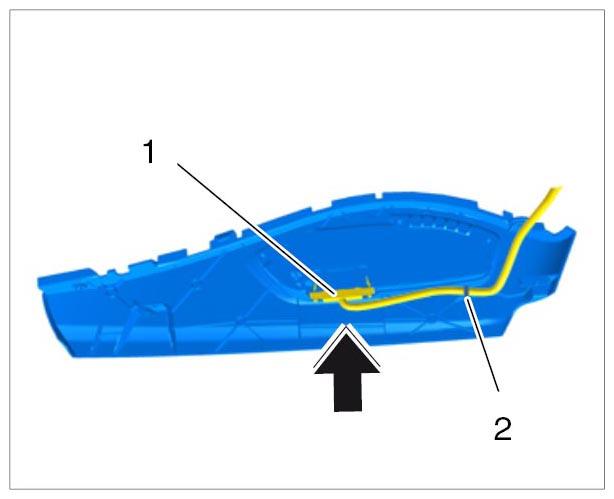

Plug in electric plug connection -1- in -direction of arrow- and secure seat adjustment cable in the retaining clip -2- .

Fig 1: Connecting Electric Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

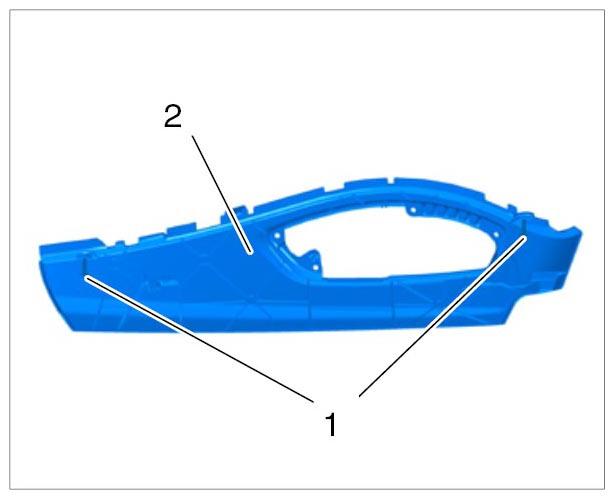

Fit fastening screws -1- in trim panel for seat -2- .

Fig 2: Fitting Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Guide trim panel for seat into the side piece.

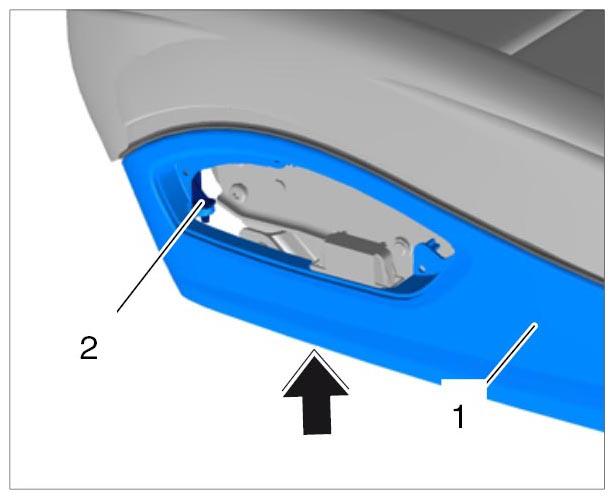

1. 3.1. Guide in trim panel for seat -1- in -direction of arrow- .
  Guide padding frame positioning pin into trim panel for seat and fit the front clip -2- .

  Fig 3: Fitting Front Clip
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

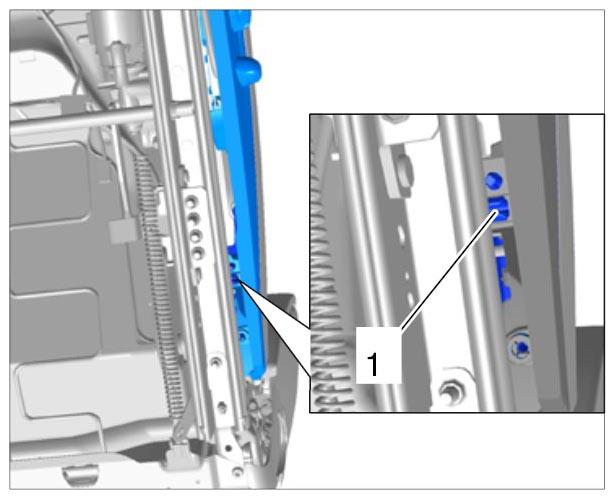

2. 3.2. Guide padding frame positioning pin into trim panel for seat and fit the rear clip -1- .

  Fig 4: Fitting Rear Clip
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

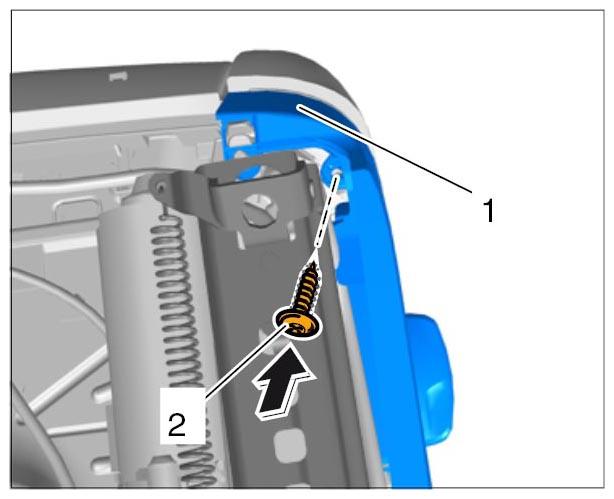

Secure trim panel for seat -1- at the rear with the fastening screw -2- .

Fig 5: Securing Seat Trim Panel (Rear)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

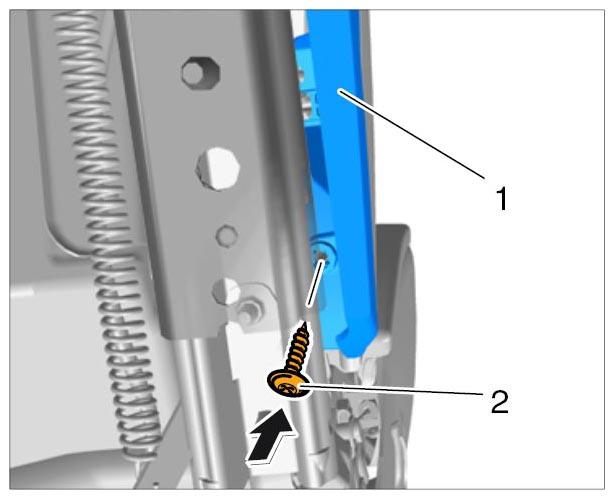

Secure trim panel for seat -1- at the front with the fastening screw -2- .

Fig 6: Securing Seat Trim Panel (Front)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
