Installing Air Cushion For Seat
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

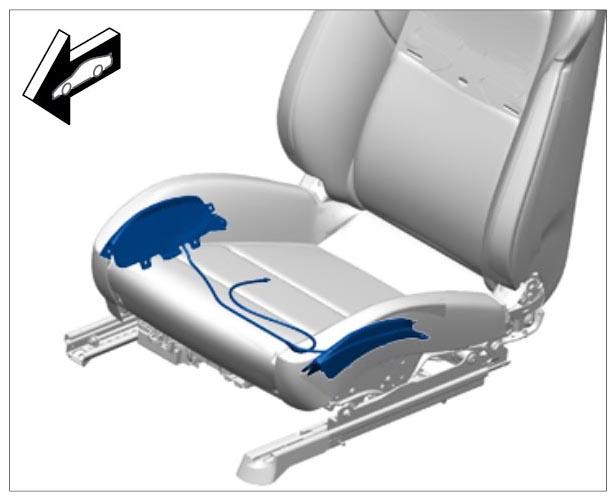

- Position air cushion for seat -3-
on the air cushion supporting plate.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

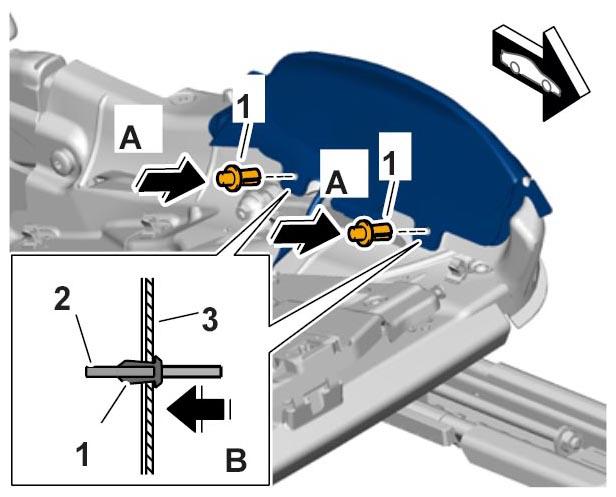

- Secure the air cushion for the seat -3-
using the two expanding clips -1-
(-arrows A-
). To do this, press the pins -2-
into the expanding clips -1-
(-arrow B-
).

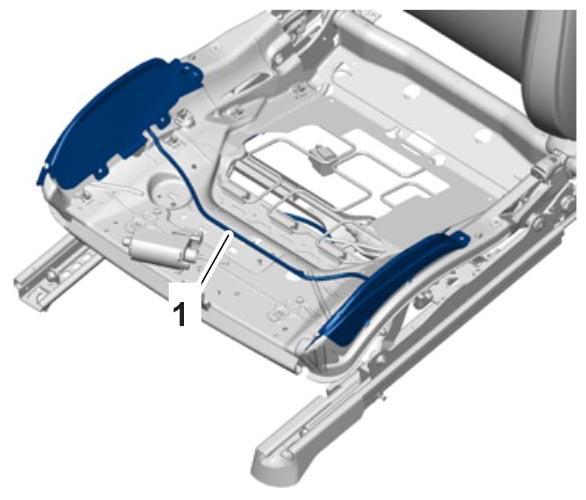

- Guide the air connection line -1-
through the seat frame -arrow
and route to the underside of the seat.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

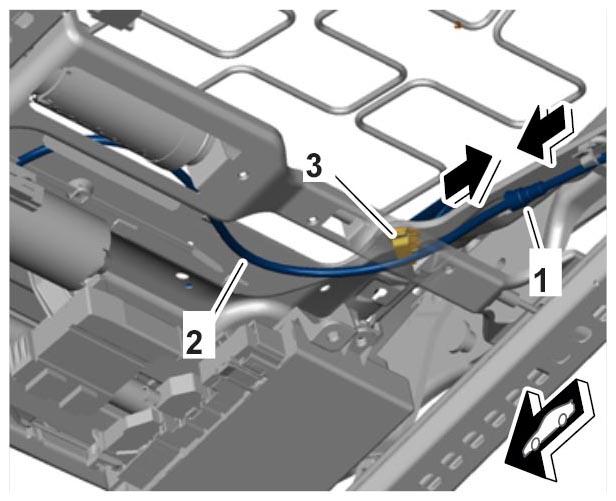

- Connect air connection line to the lumbar support.
- 4.1. Connect connection coupling -1-
for air connection line -2-
to the underside of the seat.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- 4.2. Clip air connection line -2-
into the line clip -3-
.
