Technical values - 70- Targa

Location Description Type Basic Value Tolerance 1 Tolerance 2
Seat Backrest Locking Pin   Tightening Torque 35 Nm (26 ft. lbs.) +1 Nm (+0.5 ft. lbs.) -2 Nm (- 1.5 ft. lbs.)

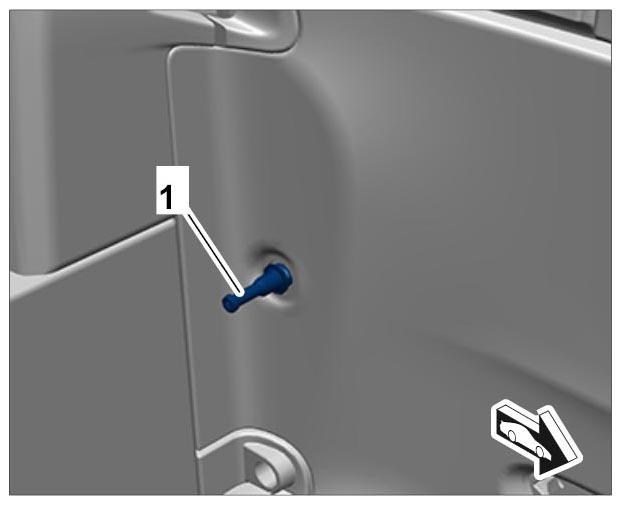

G09997852

Removing Locking Pins
