Side Trim Panel - Cabriolet
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

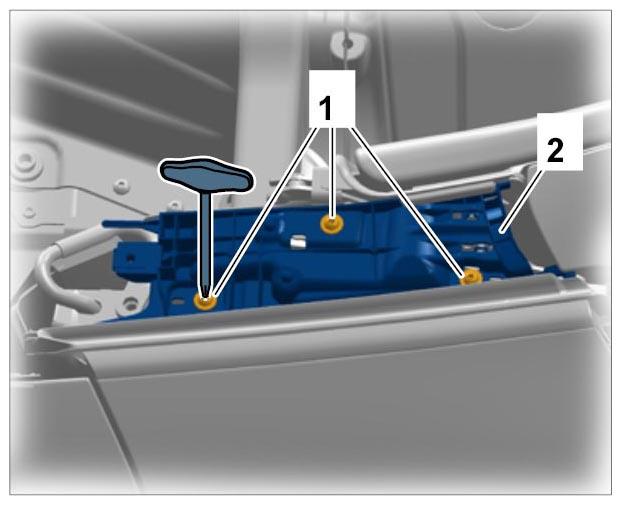

| Fastening Screw Securing Mounting Plate To Side Trim Panel | Tightening Torque | 5.7 Nm (4.5 ft. lbs.) | +/-0.5 Nm (+/- 0.3 ft. lbs.) | ||
|
Side Trim Panel Guide |
|||||

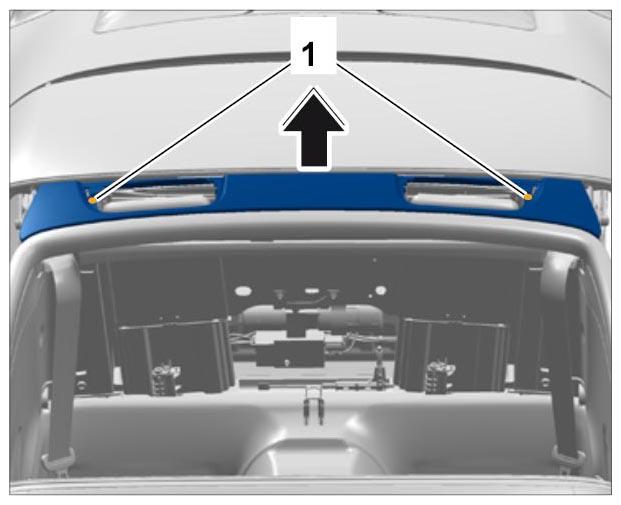

| Fastening Screw Securing Cover For Roll-Over Protection System | Tightening Torque | 3 Nm (2 ft. lbs.) | +/-0.2 Nm (+/- 0.1 ft. lbs.) | ||
|
Removing Cover For Roll-Over Protection System |
|||||
