Door Panel

Location Description Type Basic Value Tolerance 1 Tolerance 2
Fastening Screw For Door Panel   Tightening Torque 7.5 Nm (5.5 ft. lbs.) +/-0.5 Nm (+/- 0.5 ft. lbs.)

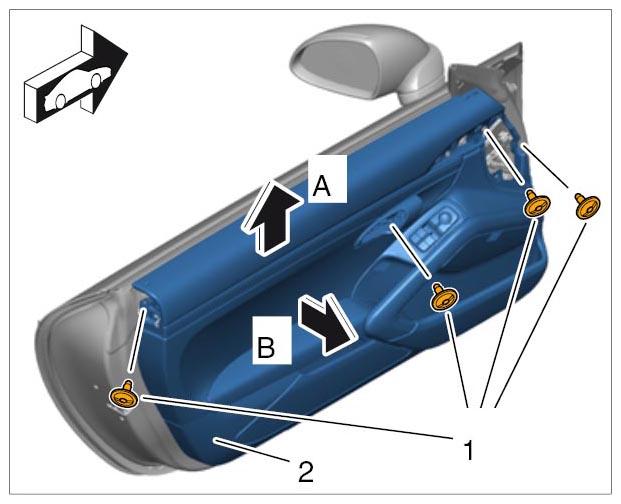

G09997820

Mounting For Door Panel
Fastening Screws For Handle   Tightening Torque 2.2 Nm (1.5 ft. lbs.) +/-0.2 Nm (+/- 0.1 ft. lbs.)

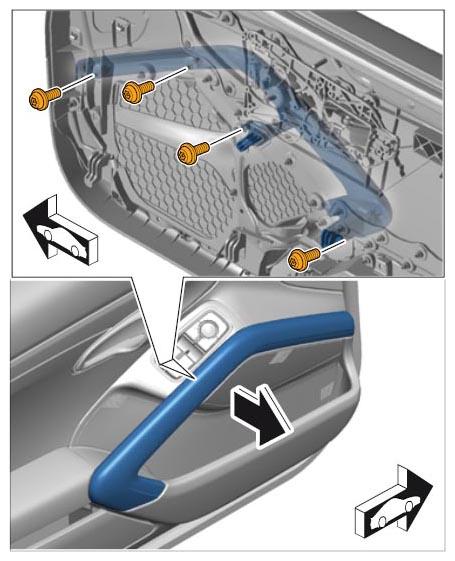

G09997821

Removing Handle
