72XX - Folding Bucket Seat
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

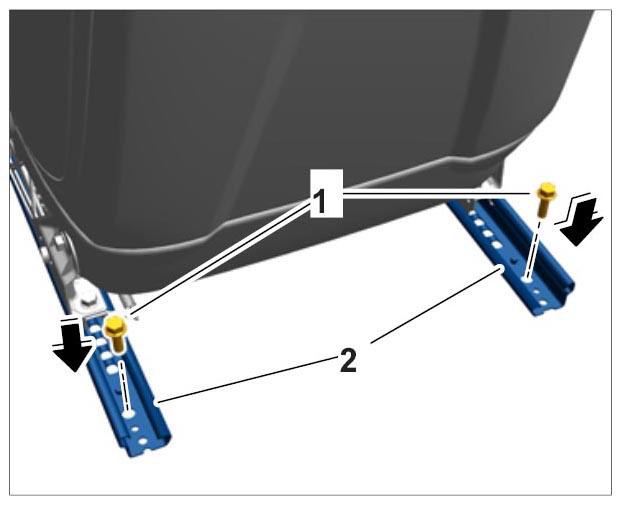

| Fastening Screw Securing Folding Sports Bucket Seat To Body | Item 1 | Tightening Torque | 50 Nm (37 ft. lbs.) | ||
|
Securing Sports Bucket Seat At The Rear |
|||||
| Fastening Screw Securing Folding Sports Bucket Seat To Body | Item 1 | Tightening Torque | 50 Nm (37 ft. lbs.) | ||
|
Tightening Fastening Screws At The Front |
|||||

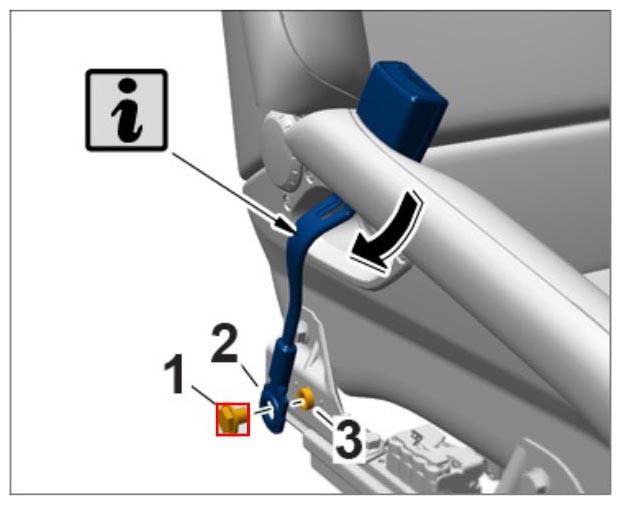

| Fastening Screw Securing Seat Belt Mount To Folding Sports Bucket Seat | Item 1 | Tightening Torque | 50 Nm (37 ft. lbs.) | ||
|
Securing Seat Belt Mount To Sports Bucket Seat |
|||||

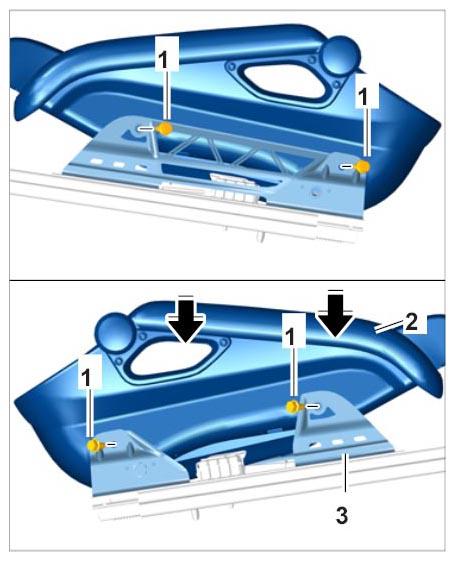

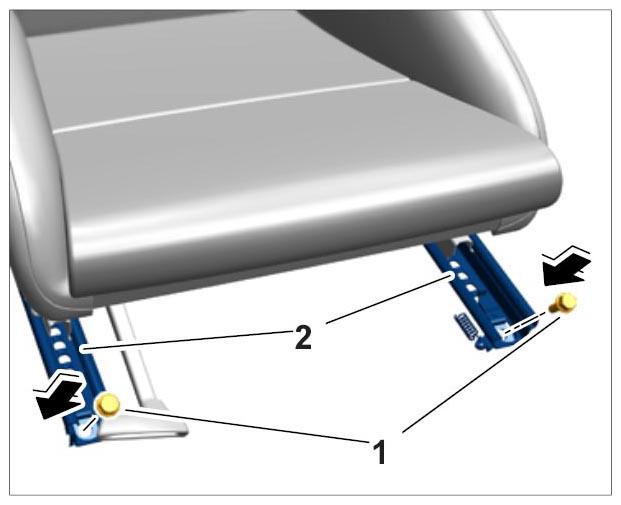

| Fastening Screw Securing Seat Shell To Bracket | Item 1 | Tightening Torque | 24 Nm (18 ft. lbs.) | +3 Nm (+2 ft. lbs.) | |
|
Installing Seat Shell |

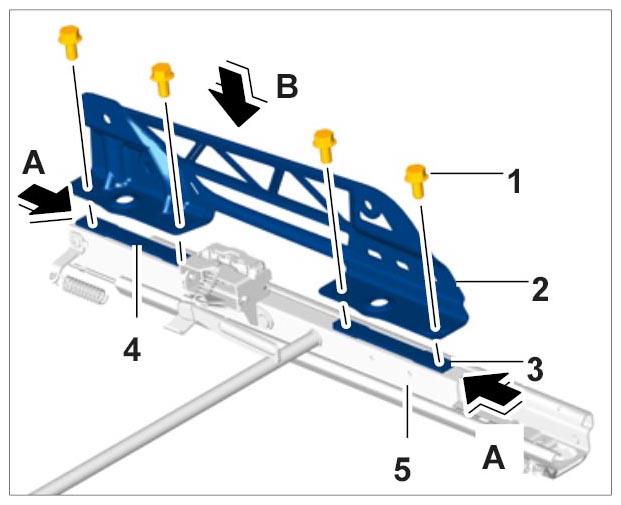

|||||
| Fastening Screw Securing Outer Bracket To Guide Rail | Item 1 | Tightening Torque | 27 Nm (20 ft. lbs.) | +3 Nm (+2 ft. lbs.) | |
|
Installing Outer Bracket |

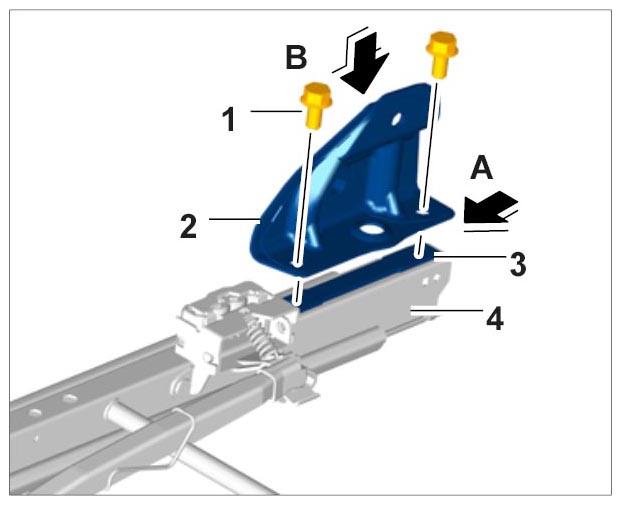

|||||
| Fastening Screw Securing Rear Inner Bracket To Guide Rail | Item 1 | Tightening Torque | 27 Nm (20 ft. lbs.) | +3 Nm (+2 ft. lbs.) | |
|
Installing Rear Inner Bracket |

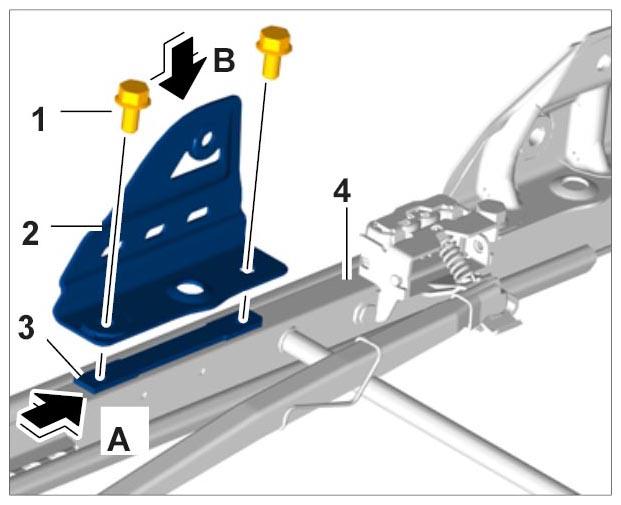

|||||
| Fastening Screw Securing Front Inner Bracket To Guide Rail | Item 1 | Tightening Torque | 27 Nm (20 ft. lbs.) | +3 Nm (+2 ft. lbs.) | |
|
Installing Front Inner Bracket |

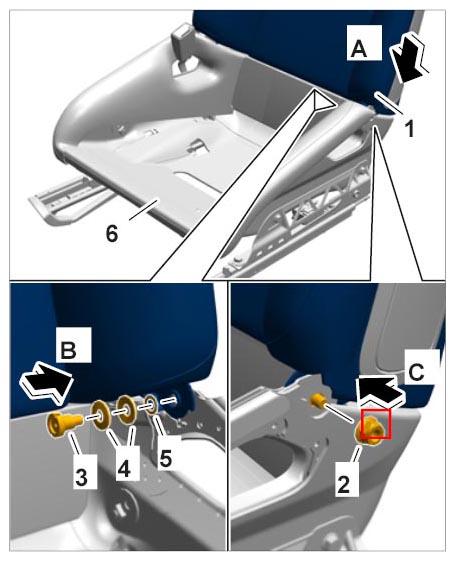

|||||
| Fastening Screw For Bearing Pin (Hinge) | Item 2 | Tightening Torque | 22 Nm (16 ft. lbs.) | +/-3 Nm (+/- 2 ft. lbs.) | |
|
Installing Backrest Shell |

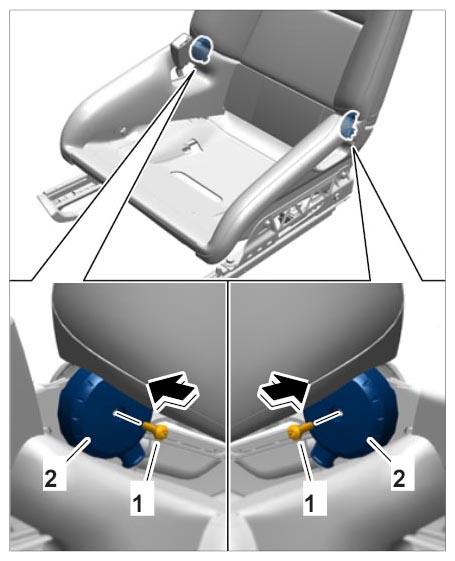

|||||
| Fastening Screw Securing Inner Hinge Trim To Bearing Pin | Item 1 | Tightening Torque | 3 Nm (2 ft. lbs.) | +/-0.3 Nm (+/- 0.2 ft. lbs.) | |
|
Installing Trim On Inner Hinge |

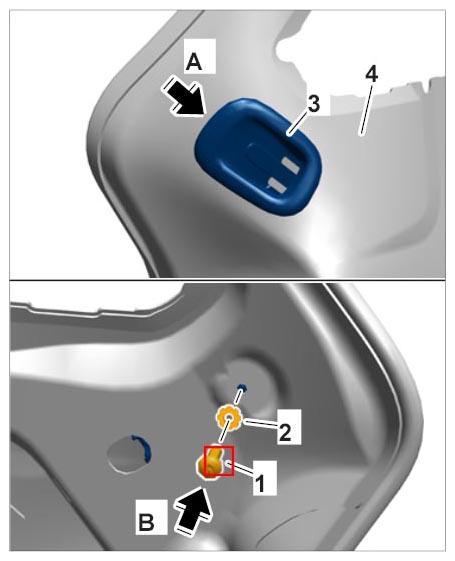

|||||
| Fastening Screw Securing Collar To Backrest Shell | Item 1 | Tightening Torque | 3 Nm (2 ft. lbs.) | ||
|
Installing Collar |
|||||
| Gap Between Seat Shell And Backrest Shell | Gap Dimension | 3 mm | -2 mm | ||
|
Adjusting Lock For Backrest Adjustment |
|||||

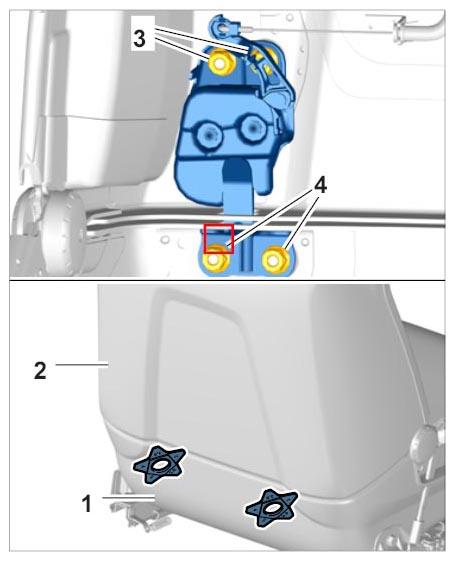

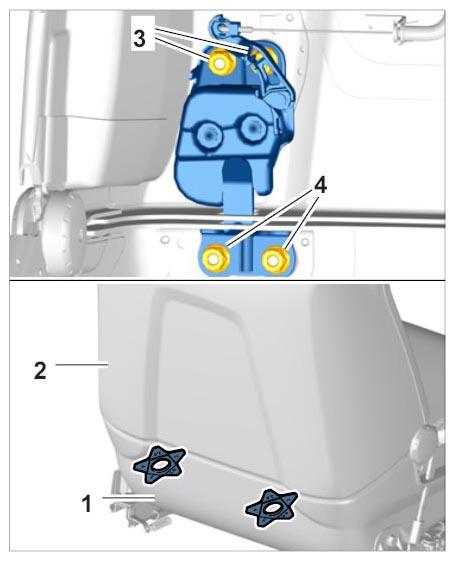

| Fastening Nut Securing Upper Part Of Lock To Backrest Shell | Item 3 | Tightening torque | 22 Nm (16 ft. lbs.) | +/-3 Nm (+/- 2 ft. lbs.) | |
|
Adjusting Lock For Backrest Adjustment |
|||||
| Fastening Nut Securing Lower Part Of Lock To Seat Shell | Item 4 | Tightening Torque | 22 Nm (16 ft. lbs.) | +/-3 Nm (+/- 2 ft. lbs.) | |
|
Adjusting Lock For Backrest Adjustment |
|||||
