Installing Headliner

Information

Make sure that the roof cover does not buckle.

1. Fit the headliner.
   1. 1.1. Two people are needed in order to fit the headliner.
      1. 1.1.1. Position of first person: Driver's door
      2. 1.1.2. Position of second person: Passenger's door
   2. 1.2. Move the headliner into the vehicle through the passenger side -arrow-  .

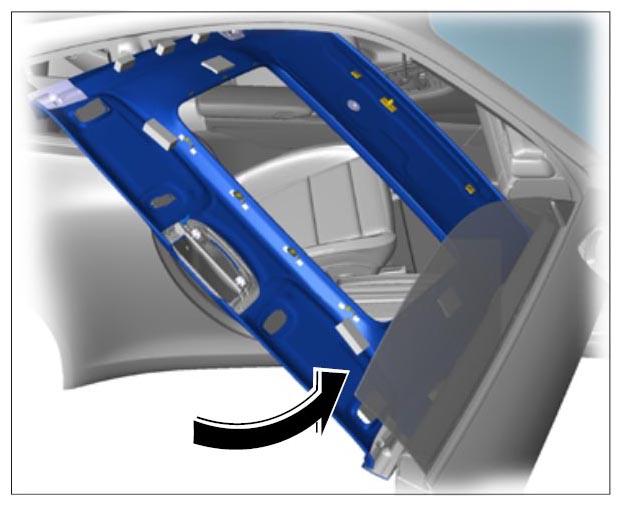

      Fig 1: Swivelling Headliner Into Door Aperture

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   3. 1.3. Guide the headliner into the vehicle until the front edge of the headliner is on the center console.

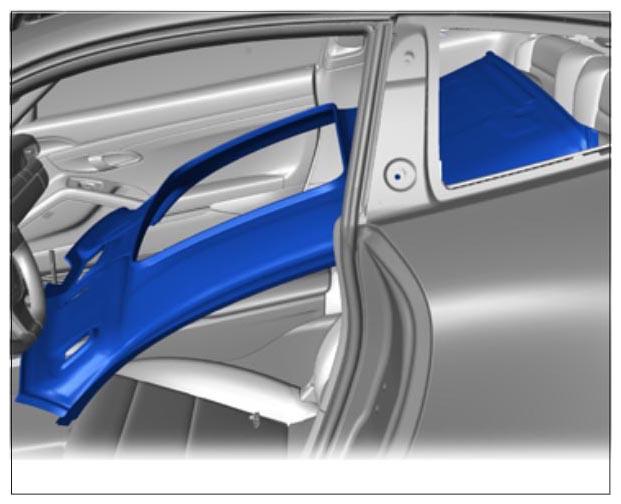

      Fig 2: Identifying Headliner On Center Console

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Two people must now lift up the headliner and clip in the fastening parts at the rear -arrows-  .

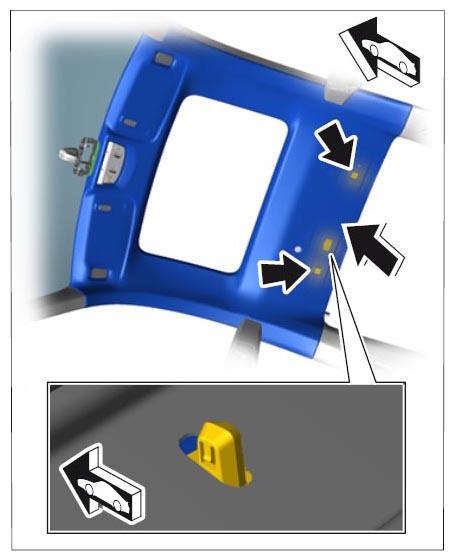

   Fig 3: Installing Headliner At Rear

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

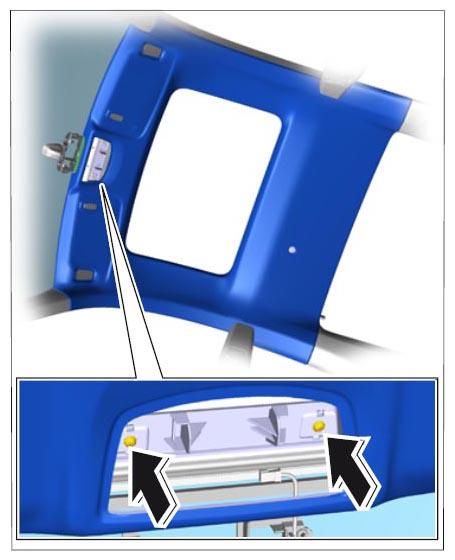

3. Screw in fastening screws close to the roof console -arrow-  .
   Fig 4: Securing Headliner

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Secure the headliner close to the sliding-roof aperture (only on vehicles with a sunroof)  .

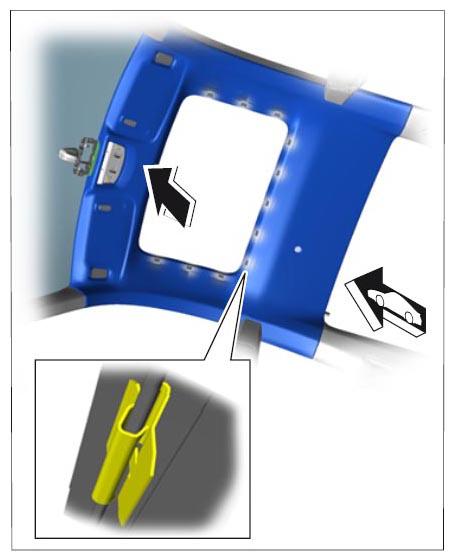

   Fig 5: Installing Headliner At Sunroof

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 4.1. Clip the headliner onto the covering frame using the fastening clips -arrows-  .
   2. 4.2. Screw in fastening screws at the front -arrows-  .

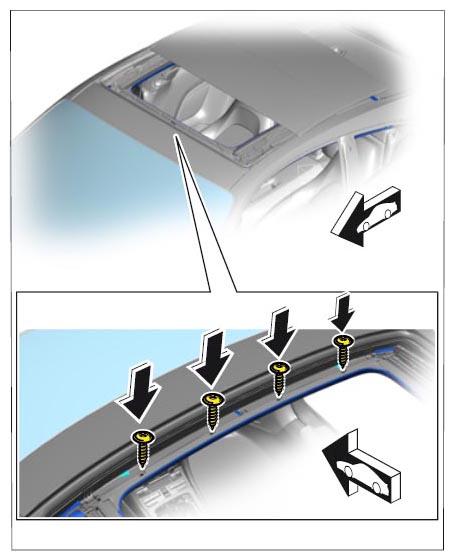

      Fig 6: Securing Headliner At Sunroof

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Install sun visor holder.

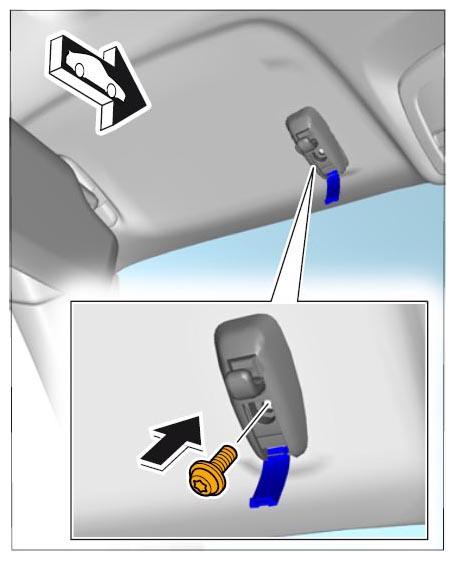

   Fig 7: Installing Sun Visor Holder

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 5.1. Position sun visor holder -arrow-  .
   2. 5.2. Screw in fastening screw → Tightening torque: 5.5 Nm (4 ftlb.)  .
   3. 5.3. Close the cover until it engages securely -arrow-  .

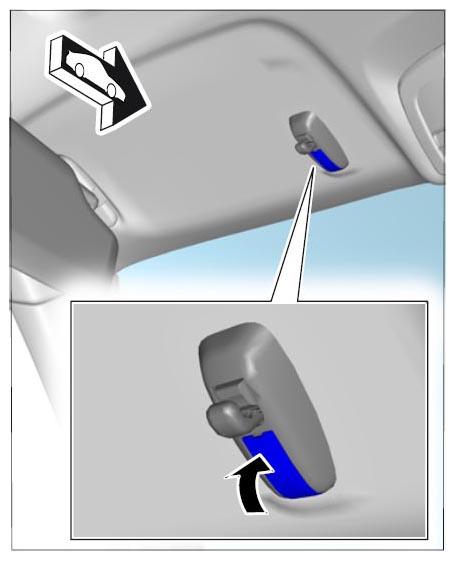

      Fig 8: Closing Sun Visor Holder Cover

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Fit rubber door seal -1-  on the body flange close to the headliner -arrows-  .

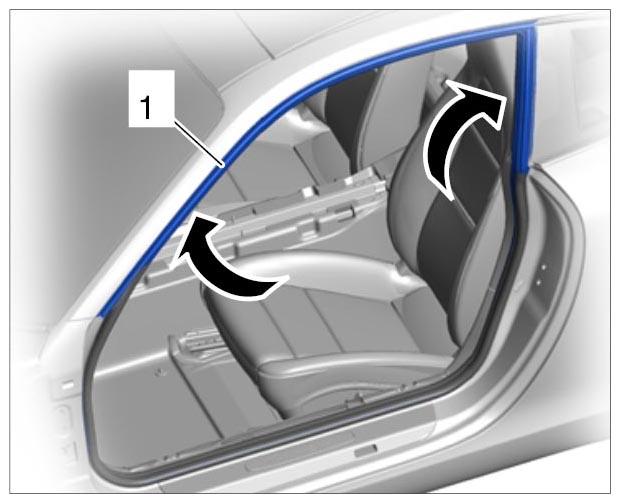

   Fig 9: Securing Rubber Seal

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Close the sliding-roof panel.
8. Move driver's and passenger's seat backrest back to its original position.
