Removing Front Roof Trim Panel

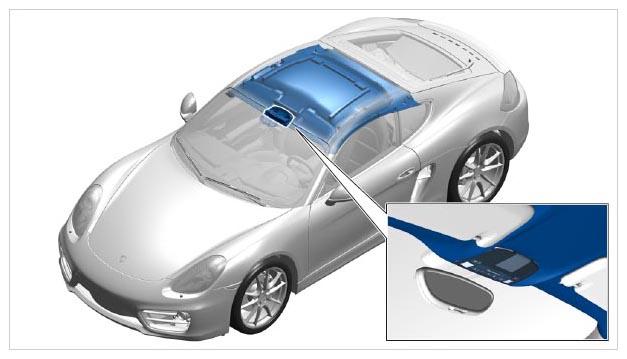

Fig 1: Identifying Roof Trim Panel Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Switch off ignition and remove remote control (hand-held transmitter).
Use a plastic wedge to unclip the roof trim panel at the sides and tilt it downwards -arrow- .

Fig 2: Removing Roof Trim Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Detach roof trim panel at the rear -arrows- .

Fig 3: Locating Roof Trim Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull off plug connection -arrow- .

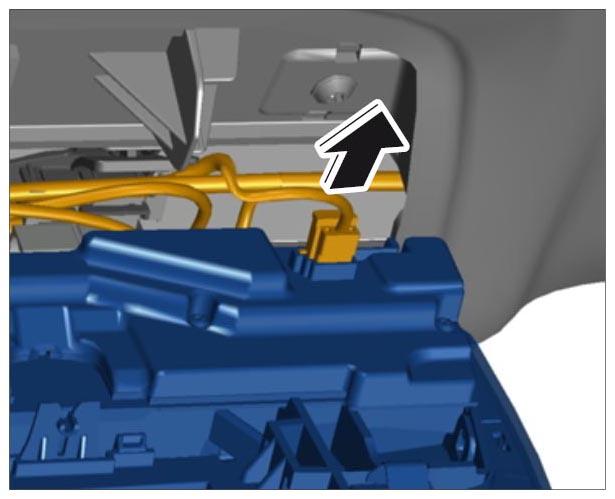

Fig 4: Disconnecting Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
