Removing Front Door Panel

Remove cover on door opener.

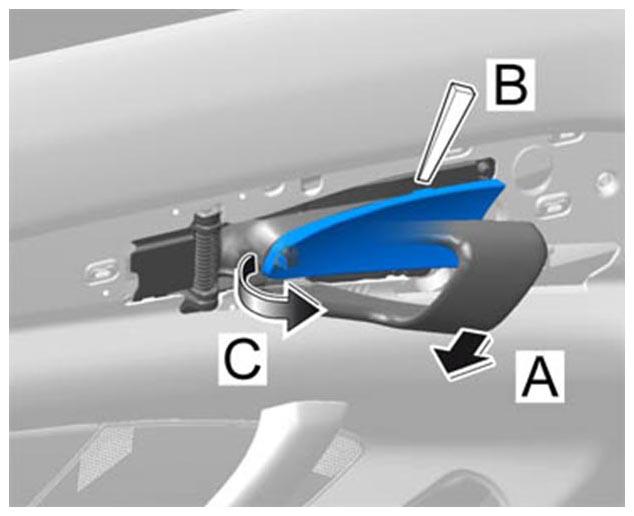

Fig 1: Removing Cover On Door Opener
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Pull up door opener -arrow A- .
2. 1.2. Unclip cover on door opener -arrow B- .
3. 1.3. Unhook rear cover and remove it -arrow C- .
Remove covers.

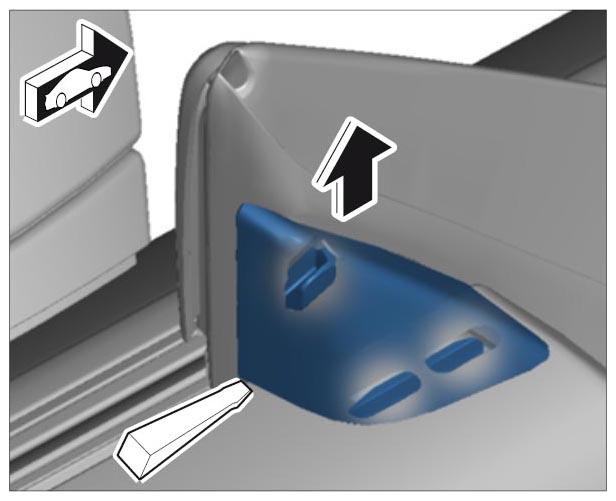

Fig 2: Removing Cover On Mirror Attachment Point Finisher
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Unclip cover on mirror attachment point finisher by pushing it up using a plastic wedge -arrow- .
2. 2.2. Carefully unclip and remove airbag cover using a plastic wedge -arrow- .

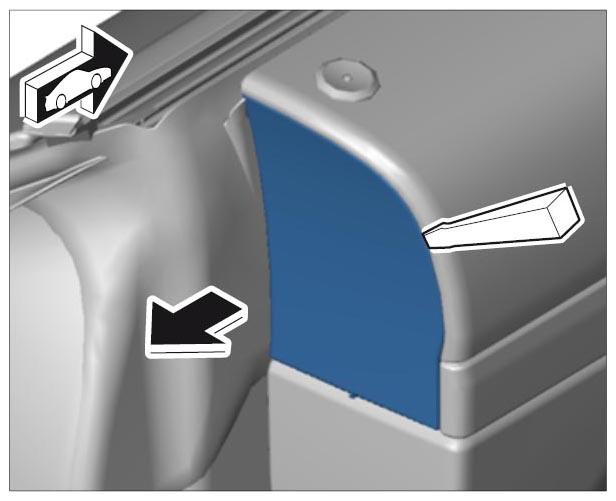

  Fig 3: Removing Airbag Cover
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove door panel.

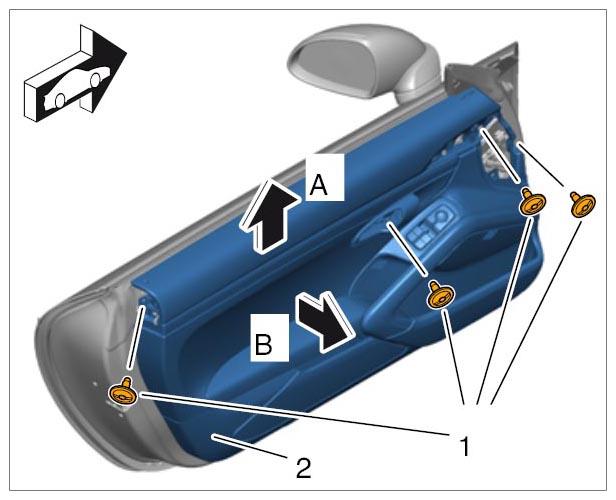

Fig 4: Removing Door Panel Mounting
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Unscrew fastening screws -1- .
2. 3.2. Guide the door panel -2- up out of the brackets -arrow A- and pull it out slightly -arrow B- .
Disconnect wire harness for door panel.

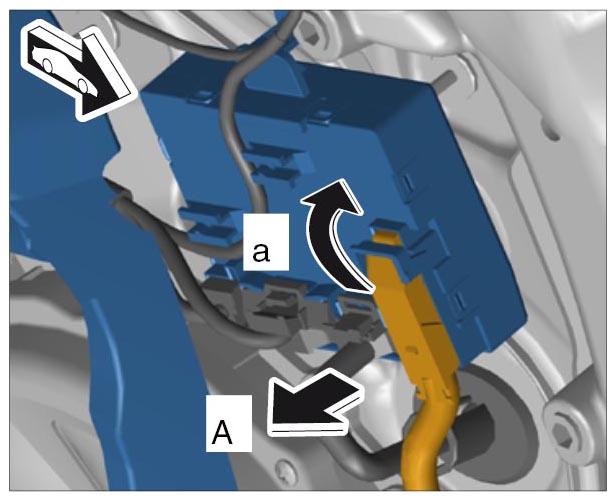

Fig 5: Disconnecting Control Unit Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 4.1. Release plug connection on the control unit, swivel the locking mechanism up -arrow a- and pull it off -arrow A- .
2. 4.2. Release plug connection for LED Kessy -arrow a- and pull it off -arrow A- .

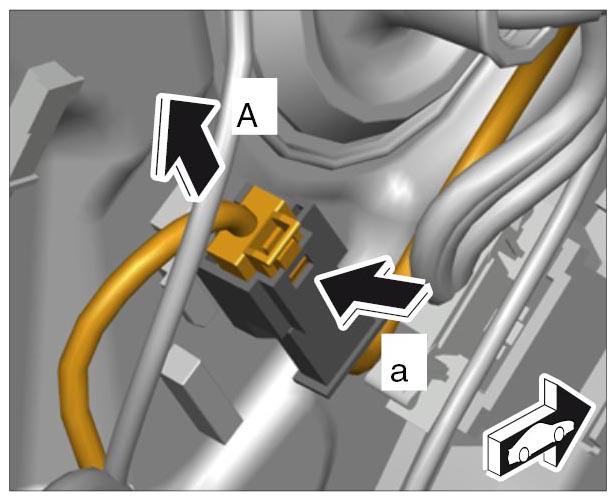

  Fig 6: Disconnecting Connector For Led Kessy
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disengage cable for door opener.

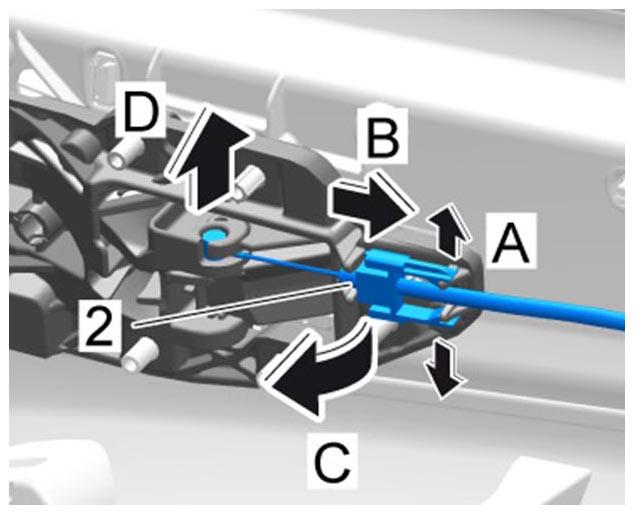

Fig 7: Removing Cable For Door Opener
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 5.1. Open out locking lugs -arrow A- .
2. 5.2. Remove cable by pulling it to the rear out of the guide -2- (-arrow B- ).
3. 5.3. Swivel cable in direction of arrow -arrow C- until the driver at the front is free.
4. 5.4. Remove the driver from the door opener -arrow D- .
Remove door panel.
Visually examine the rubber supports to check that they are complete and are seated correctly.

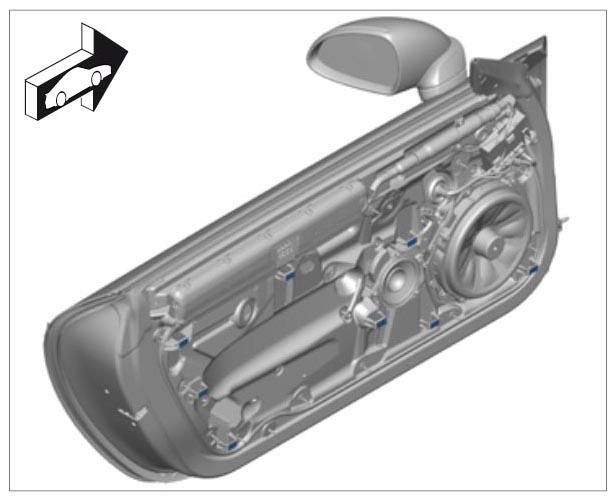

Fig 8: Identifying Rubber Supports
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
