Installing Trim Panel For Seat Well

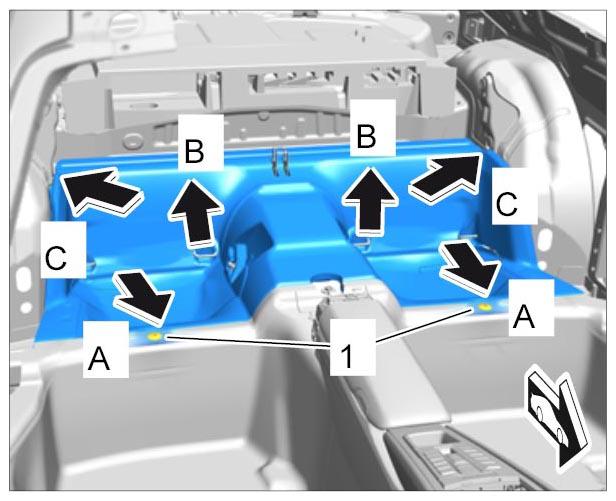

Install trim panel for seat well.
1. 1.1. Slide front edge of trim panel under the carpet -A- .
2. 1.2. Insert trim panel towards the rear -B- .
3. 1.3. Fit trim panel on the body at the sides -C- .
4. 1.4. Secure the trim panel by pressing on the fastening clips -1- .
Secure seat belt and seat-belt mount.

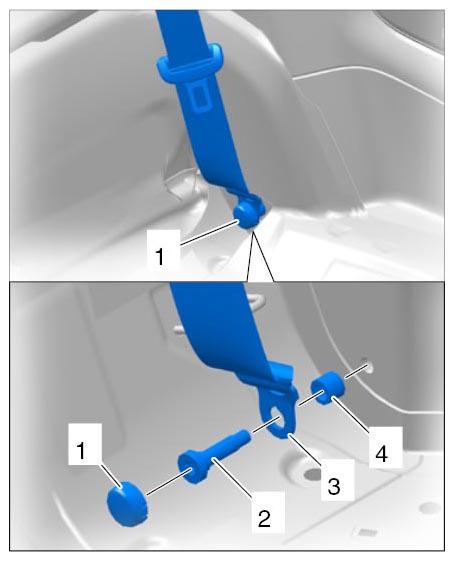

Fig 2: Identifying Seat Belt Parts And Seat-Belt Mount
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Place seat belt mount -3- and spacer sleeve -4- in installation position.
2. 2.2. Screw in fastening screw -2- and tighten to the specified tightening torque.
  → Tightening torque: 50 Nm (37 ftlb.)
3. 2.3. Press on cap on screw head -1- .
