Removing (Rear) Lid Seal

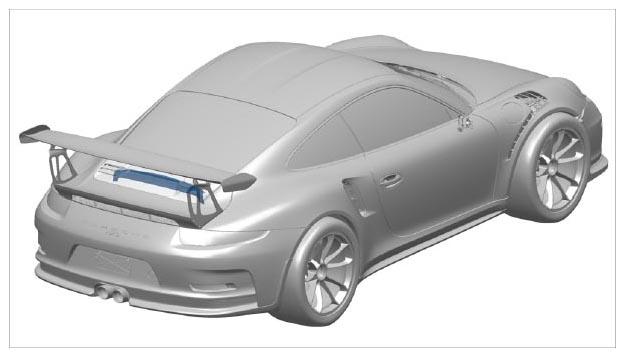

Fig 1: Identifying Rear Lid Seal
G09994012Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Open the rear lid.
  2. Unclip (rear) lid seal -1-  .

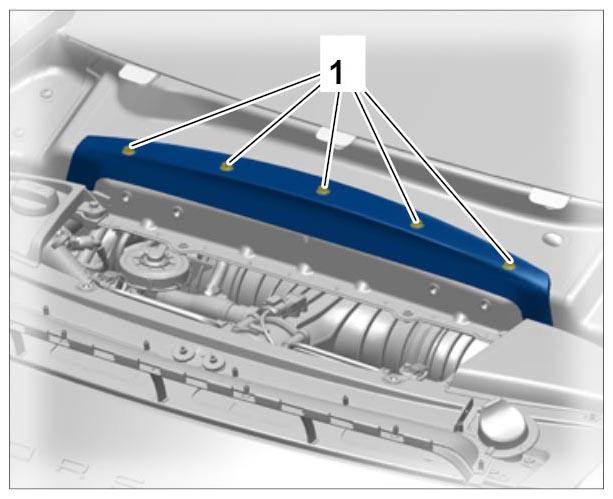

Fig 2: Identifying Rear Lid Seal Clips
G09994013Courtesy of PORSCHE CARS NORTH AMERICA, INC.
