Removing Rear Lid Hinge

  1. Unscrew fastening screws -1-  .
  2. Remove lid hinge -2-  (-arrow-  ).

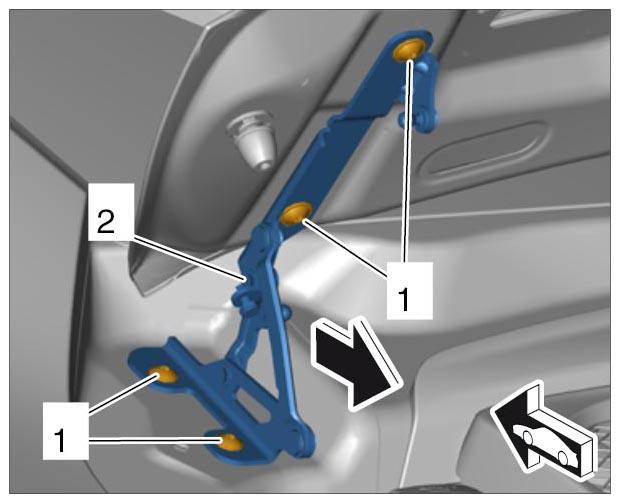

Fig 1: Removing Rear Lid Hinge
G09994011Courtesy of PORSCHE CARS NORTH AMERICA, INC.
