Removing Rear Lid

Information

• The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment.
• The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant.
• Some steps must be carried out automatically.
• Some of the repair illustrations show only one side of the vehicle.

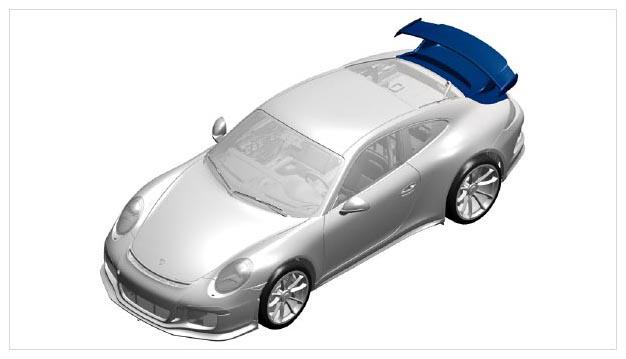

Fig 1: Identifying Rear Lid

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Release and disconnect electric plug connection -1-  (-a-  ).
2. Release electric plug connection -2-  (-b-  ) and pull it to the rear and off the retaining clip -3-  .
3. Pull wire harness and rubber sleeve through in a downward direction and pull out the wiring harness -arrow-  .

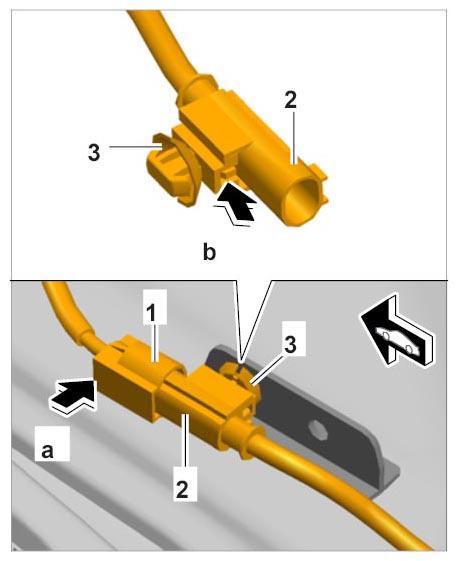

Fig 2: Disconnecting Electric Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. To make it easier to guide the cable back, secure a suitable aid to the connector and pull it out with the wiring harness.
5. Secure aid for guiding cable back on the lid.

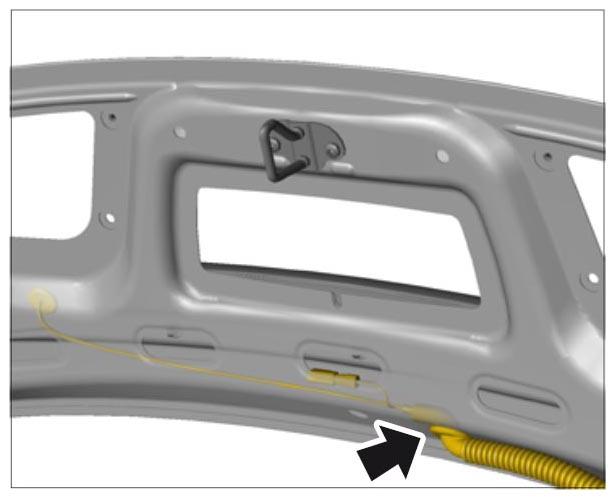

   Fig 3: Locating Wire Harness

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. A second person should hold the rear lid -2-  to prevent it falling shut.
7. Unscrew and remove fastening screws -1-  .
8. Remove rear lid -2-  .

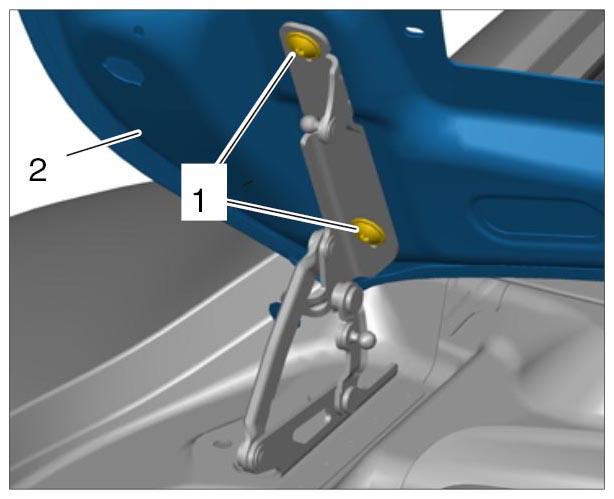

Fig 4: Identifying Rear Lid And Screws

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
