Technical Values

Location Description Type Basic Value Tolerance 1 Tolerance 2

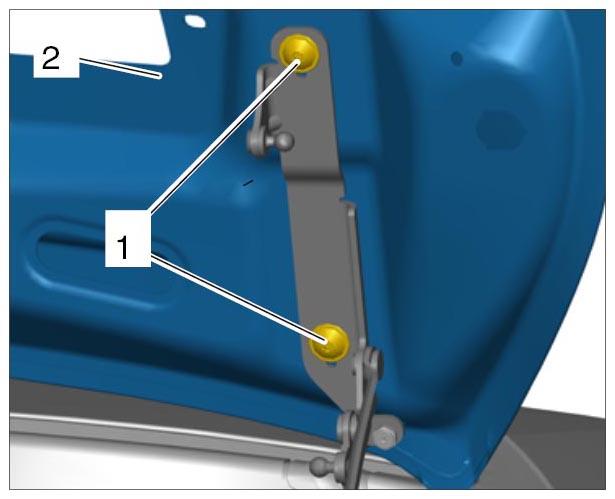

Fastening Screw Securing Hinge To Rear Lid Item 1 Tightening Torque 10 Nm (7.5 ft. lbs.)
G09993998

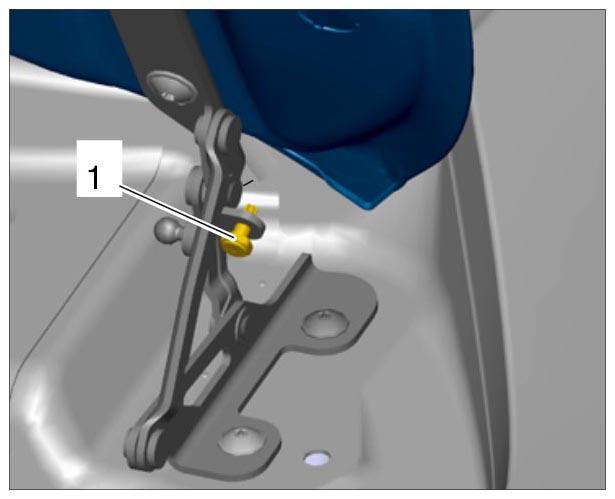

Adjusting Element For Lid Item 1 Adjustment Value 2 mm
G09993999
