Adjusting Rear Lid In X And Y Direction

Fig 1: Adjusting Rear Lid

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• Set gap dimensions on lid and accessories in accordance with the gap specifications.
• Given a clearance in the opening that is too great or too small, the accessories must be centered with respect to the body.
• Ensure that the gaps do not run in a wedge-shaped fashion or do not narrow at local points.
• The given values are guidelines, which should be observed as far as possible.
• The guidelines apply to repair and assembly work.
• Use star gauges to check the gap dimensions  . Star Gauges For Body Gap Dimensions Nr. 127-1

1. Disengage rear pneumatic spring at the lid side.

   Check gap dimensions of rear lid. → WM 5X00IN GAP DIMENSIONS

2. Unscrew fastening screw -1-  on both sides of the rear lid -2-  .

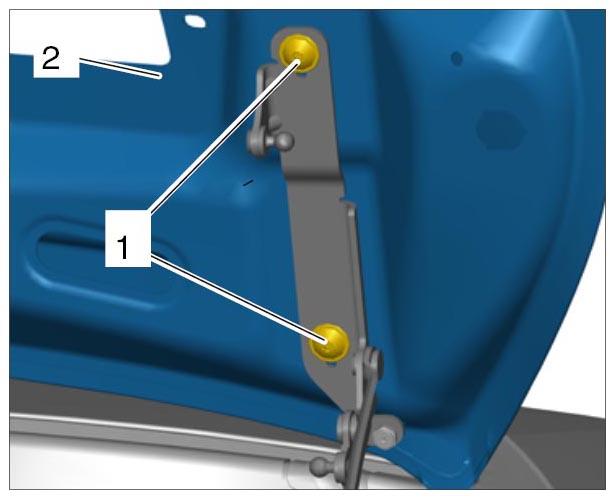

Fig 2: Identifying Rear Lid Fastening Screws
